CRM 202S-RF RGB

  • CRM 202SN-RF RGB
  • CRM 202S-RF RGB
  • CRM 202SN-RF RGB
  • CRM 202S-RF RGB
  • CRM 202S-RF RGB
  • CRM 202S-RF RGB
  • CRM 202S-RF RGB
  • Polar Pattern
  • Frequency Response

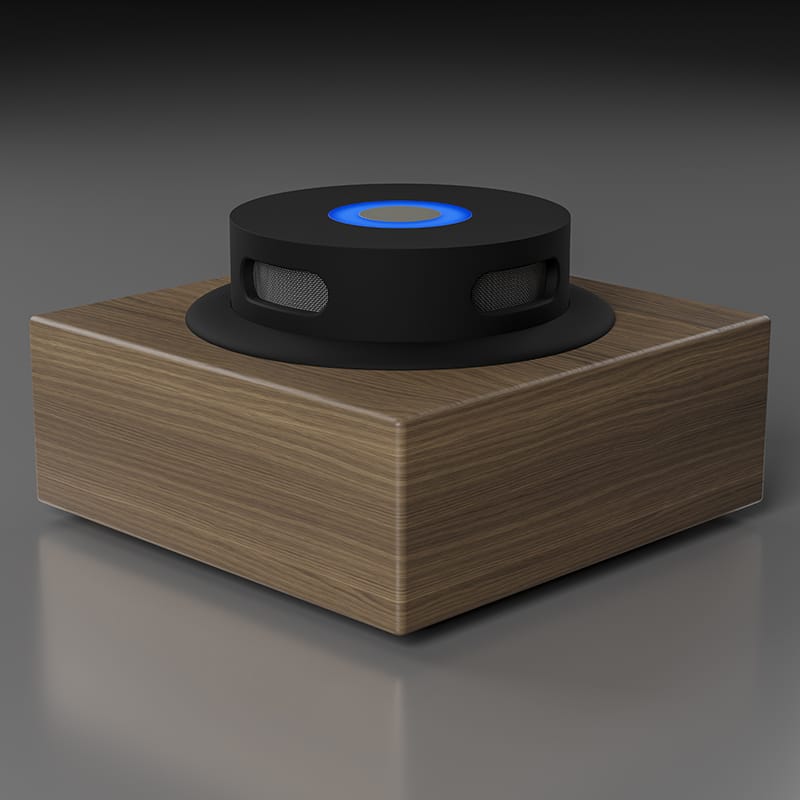

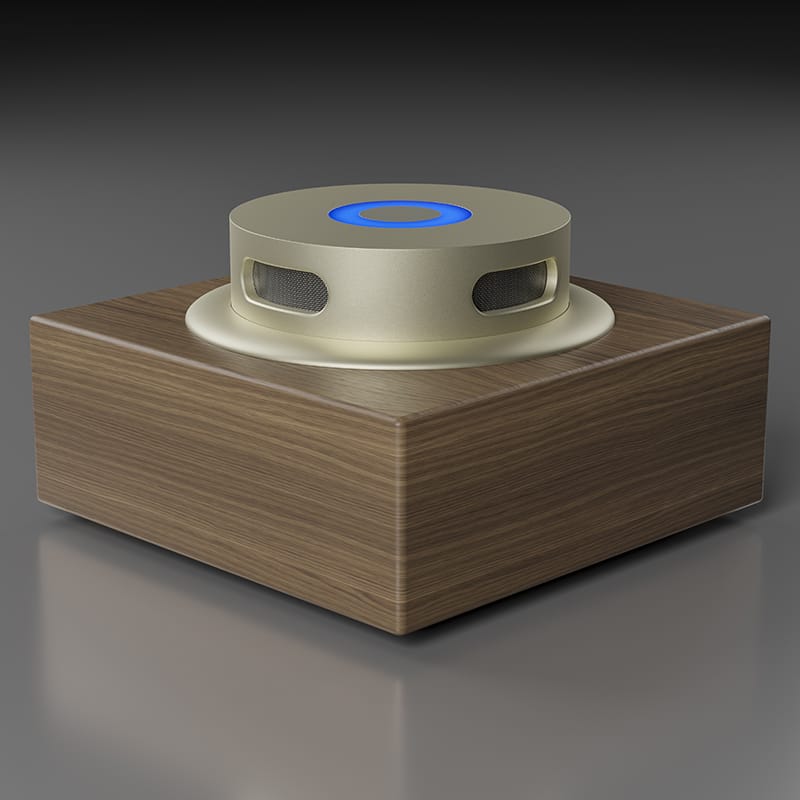

Dual element boundary layer microphone with half cardioid polar pattern.

Polar Pattern Frequency Response
CRM 202SN-RF RGB CRM 202SN-RF RGB
CRM 202SN-RF RGB
Black Nickel
CRM 202S-RF RGB CRM 202SN-RF RGB

Dual element boundary layer microphone with half cardioid polar pattern.

  • 'RF Friendly' technology offering immunity from GSM radio frequency interference.
  • Response optimised for consistent sound quality.
  • Low profile at surface level.
  • Each capsule have a half cardioid pattern that are 180° from each other, and can capture two participants on both sides of a table.
  • Touch sensitive switch with RGB.
  • Superior grade components.
  • Engineered in high quality brass.
  • Integrated phantom power adaptor.
  • Open ended termination.
  • Finish: Black Nextel® or Satin Nickel.
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)

For 'Glossary of Terms' Click Here

Technical
Length Below table 112mm / 4.41 ins
Application Designed for superior quality voice reproduction in venues such as boardrooms,conferencing,court rooms and other such venues.
Type Dual capsule, condenser
Polar Pattern Half Cardioid
Frequency Response 50 Hz - 18 KHz
Sensitivity -37dB +/- 3dB at 1 KHz (0dB = 1 V/Pa)
Impedance 200 Ohms
S/N Ratio 69dB (A)
Maximum Sound Pressure Level 125dB 1% THD
Power Requirements 9 - 48 volts Phantom Power
Termination Audio Open ended + Touch switch terminated in RJ45 via TS-C1
Supplied Accessories TS-C1
Finish Black Nextel® or Satin Nickel
Dimensions Diameter 63mm (2.48")
Weight 420g (13.5 0z)

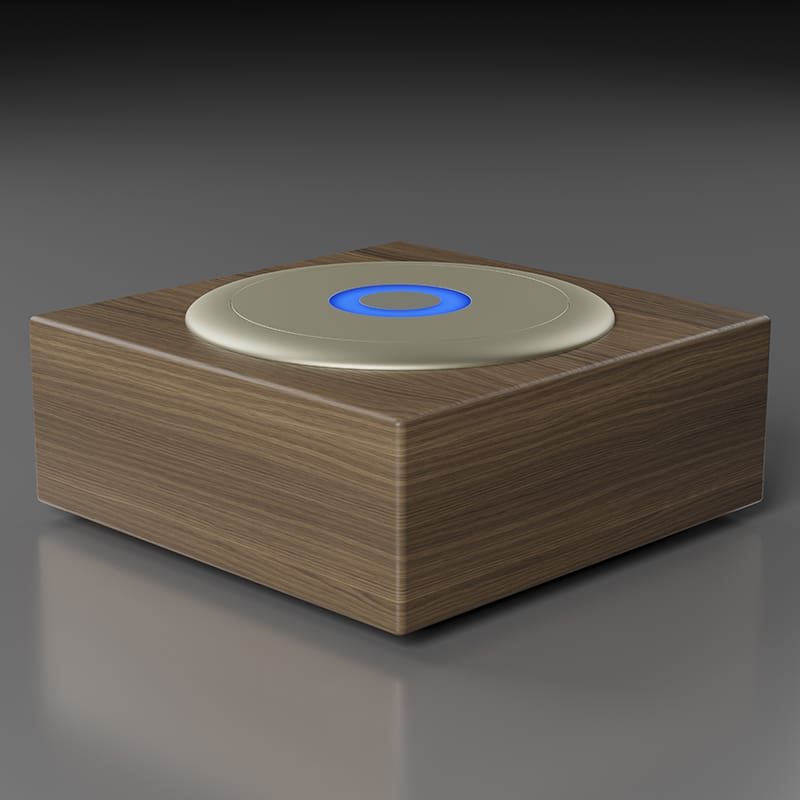

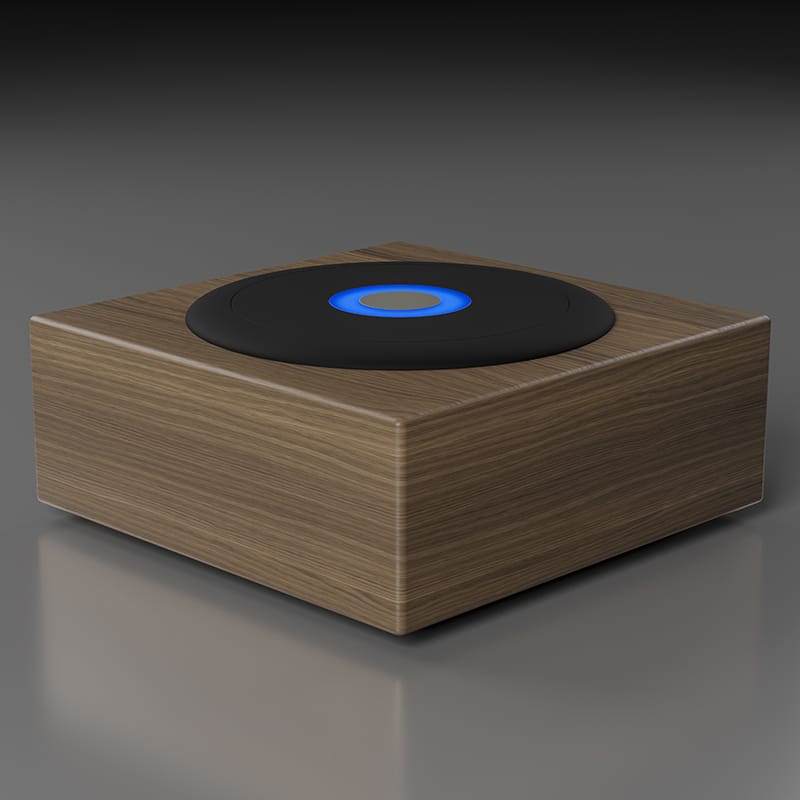

Architects and engineer specifications Boundary layer twin capsule having half cardioid polar pattern. CRM 202S-RF has a built in mechanism allowing the microphone to disappear after use simply by pressing the top downwards until it locks in place. A touch sensitive switch with RGB is incorporated into the top of the microphone allowing On/Off switching connected to TS-C1 and used with a DSP or logic controlled box. The microphone is constructed from high quality brass construction and is fitted with a phantom power adaptor accepting 9 to 48 volts DC. Impedance of 200 Ohms. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Supplied with 2 x 2M (6.6ft) 2 core + screen cable with open ended termination. Frequency response 50 Hz - 18 KHz +/-3dB, sensitivity -37dB ± 3dB @ 1KHz (0dB =1V/Pa), total harmonic distortion (THD) at an operating level of 125dB less than 1%. Microphone length below table: 112mm/4.4 ins Above table: 2mm (0.08ins) Body diameter: 56.5mm (2.2 ins). Finish: Black Nextel® or Satin Nickel.
