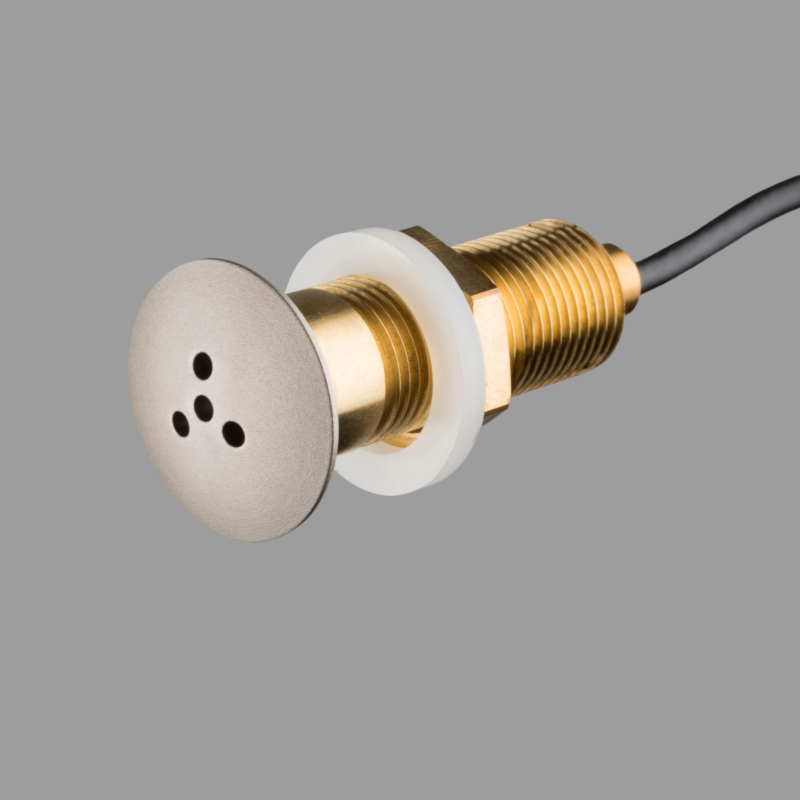

C 007 SERIES



Through desk/ceiling/panel mount Boundary Layer design with an Omni-Directional Polar Pattern.

Black White Nickel
Open ended C 007 C 007W C 007N
PPA / XLR C 007E C 007EW
CPPW 01 C 007 CPPW 01 C 007W CPPW 01
Line level C 007LL C 007WLL
3.5mm mono connector C 007JP C 007WJP

Through desk/ceiling/panel mount Boundary Layer design with an Omni-Directional Polar Pattern.

  • Boundary Layer Condenser microphone.
  • Omni-Directional.
  • High quality engineering.
  • Non-reflective delrin.
  • Non-conductive body.
  • Ease of mounting.
  • Low visibility when mounted.
  • Open ended, CPPW01 or PPA with XLR termination.
  • Finish: Matt Black, White or Nickel.
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)

For 'Glossary of Terms' Click Here

C 007
Length 25mm (1.0")
Application Designed for surveillance in sensitive areas - banks, airports, railway stations, law courts, conference and convention centres.
Type Condenser (back electret)
Polar Pattern Omnidirectional
Frequency Response 50 Hz - 20 KHz
Sensitivity -42.5dB +/- 3dB at 1 KHz (OdB = 1 V/Pa)
S/N Ratio 40dB(A)
Maximum Sound Pressure Level 120db at 1KHz 1% T.H.D.
Power Requirements 2 - 10 Volts max via in line resistor
Optimum Operating Requirements 6 Volts
Termination Open ended
Finish Matt Black, White or Nickel
Dimensions DIA 20mm (0.8")
Architects and engineer specifications The condenser microphone is a through desk/ceiling/panel mount boundary layer design with an omni-directional polar pattern. The microphone is made of a delrin construction and includes 39”(1 metre) of cable, with open ended termination. Frequency response 50 Hz to 20 KHz; Impedance 2-10 volts through surge resistor; Sensitivity -42.5dB +/- 3dB @ 1Khz (0dB =1V/Pa); Total Harmonic Distortion (THD) at an operating level of 120dB is no greater than 1%. Finish: Matt Black, White or Nickel.
C 007E
Length 25mm (1.0")
Application Designed for surveillance in sensitive areas - banks, airports, railway stations, law courts, conference and convention centres.
Type Condenser (back electret)
Polar Pattern Omnidirectional
Frequency Response 50 Hz - 20 KHz
Sensitivity -42.5dB +/- 3dB at 1 KHz (OdB = 1 V/Pa)
S/N Ratio 40dB(A)
Maximum Sound Pressure Level 120db at 1KHz 1% T.H.D.
Power Requirements 2 - 10 Volts max via in line resistor
Optimum Operating Requirements 6 Volts
Termination PPA with XLR
Finish Matt Black or White
Dimensions DIA 20mm (0.8")
Architects and engineer specifications The condenser microphone is a through desk/ceiling/panel mount boundary layer design with an omni-directional polar pattern. The microphone is made of a delrin construction and includes 39”(1 metre) of cable, with PPA with XLR termination. Frequency response 50 Hz to 20 KHz; Impedance 2-10 volts through surge resistor; Sensitivity -42.5dB +/- 3dB @ 1Khz (0dB =1V/Pa); Total Harmonic Distortion (THD) at an operating level of 120dB is no greater than 1%. Finish: Matt Black or White.
C 007 CPPW 01
Length 25mm (1.0")
Application Designed for surveillance in sensitive areas - banks, airports, railway stations, law courts, conference and convention centres.
Type Condenser (back electret)
Polar Pattern Omnidirectional
Frequency Response 50 Hz - 20 KHz
Sensitivity -42.5dB +/- 3dB at 1 KHz (OdB = 1 V/Pa)
S/N Ratio 40dB(A)
Maximum Sound Pressure Level 120db at 1KHz 1% T.H.D.
Power Requirements 2 - 10 Volts max via in line resistor
Optimum Operating Requirements 6 Volts
Termination CPPW 01/Screw terminals
Finish Matt Black or White
Dimensions DIA 20mm (0.8")
Architects and engineer specifications The condenser microphone is a through desk/ceiling/panel mount boundary layer design with an omni-directional polar pattern. The microphone is made of a delrin construction and includes 39”(1 metre) of cable, with CPPW 01 phantom power adapter. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response 50 Hz to 20 KHz; Impedance 2-10 volts through surge resistor; Sensitivity -42.5dB +/- 3dB @ 1Khz (0dB =1V/Pa); Total Harmonic Distortion (THD) at an operating level of 120dB is no greater than 1%. Finish: Matt Black or White.
C 007LL
Length 25mm (1.0")
Application Designed for surveillance in sensitive areas - banks, airports, railway stations, law courts, conference and convention centres.
Type Condenser (back electret)
Polar Pattern Omnidirectional
Frequency Response 50 Hz - 20 KHz
Sensitivity -42.5dB +/- 3dB at 1 KHz (OdB = 1 V/Pa)
S/N Ratio 40dB(A)
Maximum Sound Pressure Level 120db at 1KHz 1% T.H.D.
Power Requirements 24 Volts / 12 Volts DC
Optimum Operating Requirements 6 Volts
Termination CAP 002/Screw terminals
Finish Matt Black or White
Dimensions DIA 20mm (0.8")
Architects and engineer specifications The condenser microphone is a through desk/ceiling/panel mount boundary layer design with an omni-directional polar pattern. The microphone is made of a delrin construction and includes 39”(1 metre) of cable, with CAP 002 line level pre amp. Frequency response 50 Hz to 20 KHz; Impedance 2-10 volts through surge resistor; Sensitivity -42.5dB +/- 3dB @ 1Khz (0dB =1V/Pa); Total Harmonic Distortion (THD) at an operating level of 120dB is no greater than 1%. Finish: Matt Black or White.
C 007JP
Length 25mm (1.0")
Application Designed for surveillance in sensitive areas - banks, airports, railway stations, law courts, conference and convention centres.
Type Condenser (back electret)
Polar Pattern Omnidirectional
Frequency Response 50 Hz - 20 KHz
Sensitivity -37.5dB +/- 3dB at 1 KHz (OdB = 1 V/Pa)
S/N Ratio 40dB(A)
Maximum Sound Pressure Level 120db at 1KHz 1% T.H.D.
Power Requirements 2 - 10 Volts max via in line resistor
Optimum Operating Requirements 6 Volts
Termination 3.5mm mono connector
Finish Matt Black or White
Dimensions DIA 20mm (0.8")
Architects and engineer specifications The condenser microphone is a through desk/ceiling/panel mount boundary layer design with an omni-directional polar pattern. The microphone is made of a delrin construction and includes 39”(1 metre) of cable, with 3.5mm mono connector termination. Frequency response 50 Hz to 18 KHz; Impedance 2-10 volts through surge resistor; Sensitivity -37.5dB +/- 3dB @ 1Khz (0dB =1V/Pa); Total Harmonic Distortion (THD) at an operating level of 120dB is no greater than 1%. Finish: Matt Black, White or Nickel.
