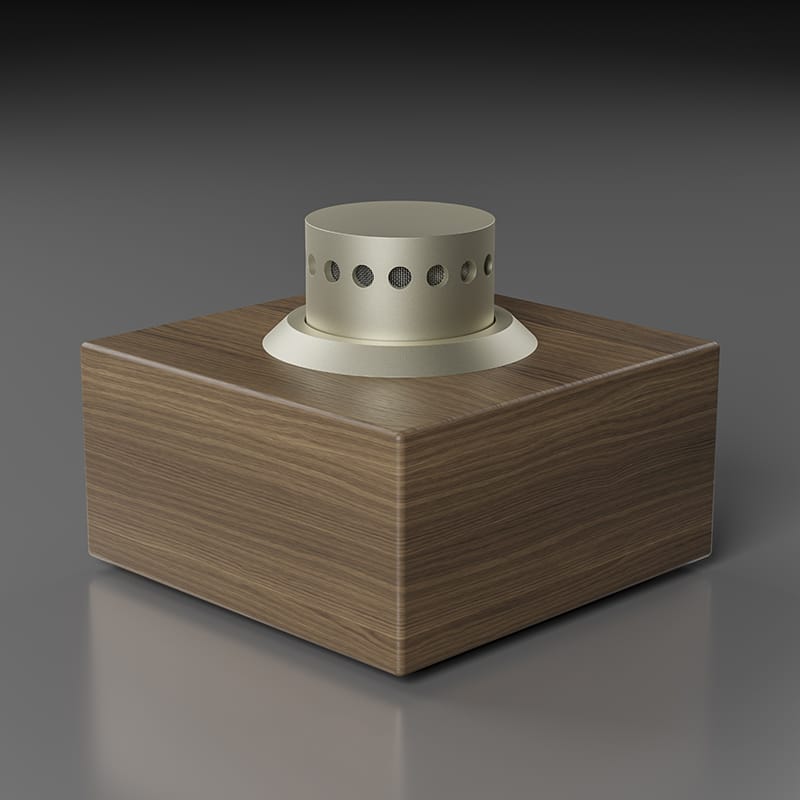

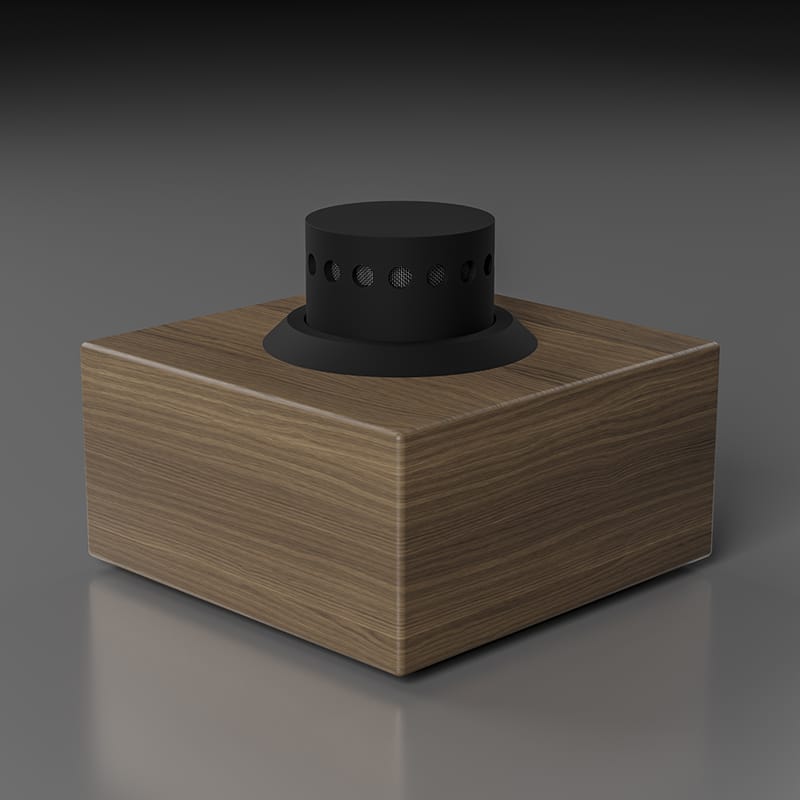

Boundary Layer Through Table Omni-Directional Condenser Microphone. Contains inbuilt mechanism that will allow the Microphone to disappear without having to physically remove it from the table.

Polar Pattern Frequency Response
CRM 100N-RF CRM 100N-RF
CRM 100N-RF CRMF 100N-RF
CRMF 100N-RF CRMF 100N-RF
Black Nickel
CRM 100-RF CRM 100N-RF
Special order (Flush mount version) CRMF 100-RF CRMF 100N-RF

Boundary Layer Through Table Omni-Directional Condenser Microphone. Contains inbuilt mechanism that will allow the Microphone to disappear without having to physically remove it from the table.

  • Easy to install.
  • Low profile at surface level.

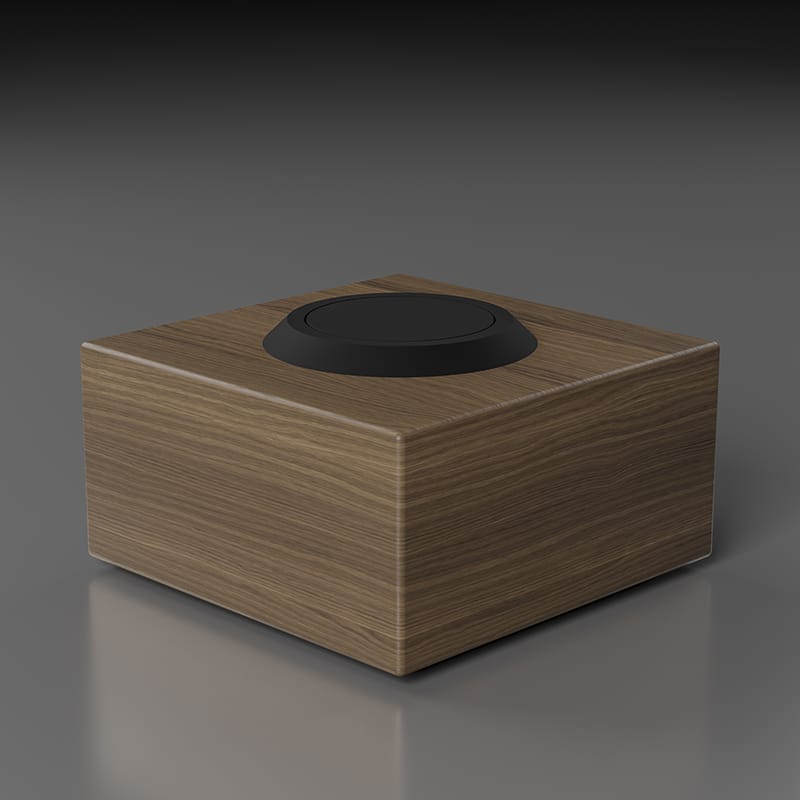

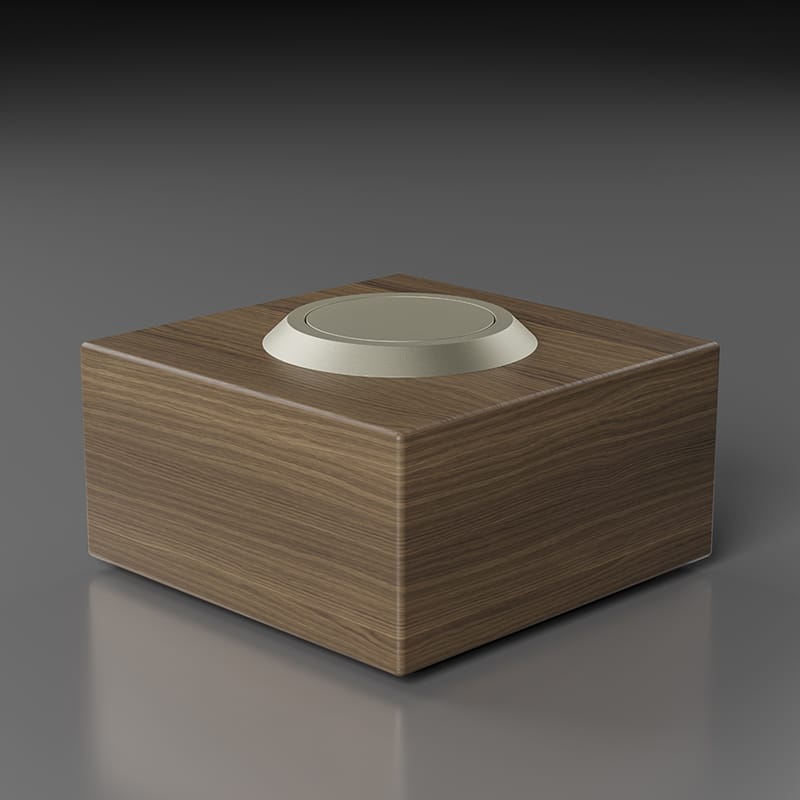

  • Unique ability to lock capsule away from sight when not in use.
  • Designed for remote switching.
  • Robust brass construction.
  • Omni-Directional Polar Pattern.
  • Built-in RF filter.
  • Balanced output.
  • Phantom power module supplied.
  • Supplied with 2m (6.6 ft) 2 core + screen cable.
  • Finish: Black Nextel® or Satin Nickel.
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)

For 'Glossary of Terms' Click Here

Technical
Application Designed for simple installion with professional sound response. For use in conferencing or security situations.
Type Condenser (back electret)
Polar Pattern Omni-Directional
Frequency Response 30Hz - 20KHz
Sensitivity -42.5dB +/- 3dB at 1 KHz (OdB = 1 V/Pa)
Impedance 200 Ohms
S/N Ratio 68dB(A)
Maximum Sound Pressure Level 120db at 1KHz 1% T.H.D.
Power Requirements 9 - 48 volts phantom power
Termination Open ended termination. Fixing is via M10 x 1 Thread with shake proof washer and nut
Finish Black Nextel® or Satin Nickel.
Dimensions Above Table:15.00mm (0.59") Diameter:36.00mm (1.42") Below Table:111.00mm (4.37") Diameter:30.00mm (1.18")
Weight 384g (13.55 oz)
Architects and engineer specifications The condenser microphone is a very low profile boundary layer through table design, with an omni-directional polar pattern. The microphone has a unique ability to retract and lock the capsule module away from sight leaving only 3 mm (0.12”) protruding on top of the table. The microphone is of a robust brass construction and include 2 Metres (6.6ft) of cable. The microphone includes an integral phantom power module which is to be powered by 9 to 48 volts. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G); Frequency response 30 Hz to 20 KHz; Sensitivity -42.5dB ± 3dB @ 1KHz (0dB =1V/Pa); Total Harmonic Distortion (THD) at an operating level of 120dB is no greater than 1%. Finish: Black Nextel® or Satin Nickel.
