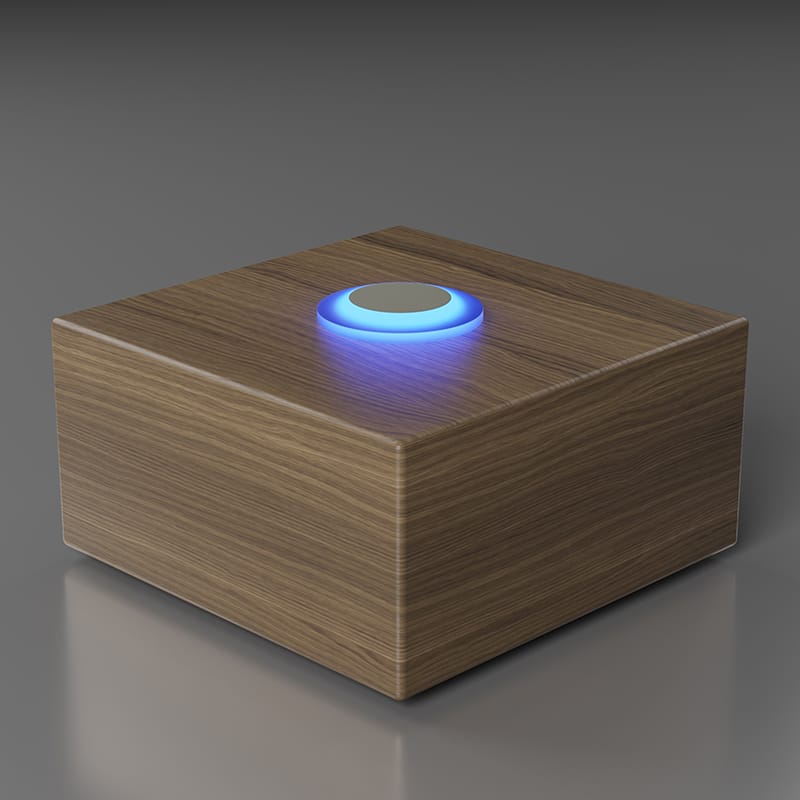

"Providing multiple colours, the TS003 capacitive touch switch provides clear and precise visual operational status. With no moving parts, low-profile mounting and encapsulated electronics, TS003 also provides protection from office contaminants affecting its operation. Comes with modular under desk mount controller for easy install.
- Self-calibrating.
- RGB LED provides multi-colour combination for clear precise visual status of microphone or other devices.
- No moving parts and employing surface mount technology, ensures extreme reliability, longevity and trouble free use.
- Electronic circuitry fully encapsulated to protect operation from spills or other contaminants.
- Terminated with RJ 45 connector and supplied with a touch switch controller (TS-C1) allows connection via CAT 5E patch cable back to CDT-100 or directly to DSP.
- Programmable via DSP to operate in PTT, PTM or latching modes.
- 12V DC operation using regulated power supply or CDT-100.
- Fitted with 200mm cable that connects to TS-C1’s TS-IN.
- RS-IN on TS-C1 provides external switch connectivity.
- Maximum current consumption 70mA.
- Supplied with M15 nut for table fixing.
- Finished in clear polycarbonate.
For 'Glossary of Terms' Click Here
| Technical |
| Length |
45mm/1.77" |
| Application |
Used in conjunction with DSP units and other electronic mute switching boxes to facilitate soft PTT, PTM and Latching Switching. |
| Power requirements |
12V dc @ 70mA |
| Termination |
RJ 45 Plug Pins 1-7 used |
| Supplied Accessories |
TS-C1 |
| Finish |
Clear Polycarbonate |
| Dimensions |
Head Dia: 20mm/0.79", Body Dia:15mm/0.59" Length 45mm/1.77" |
| Weight |
41.3gms. |
| Architects and engineer specifications |
Through Table / Desk / Flush mount electronic touch switch with RGB to give clear precise visual status of operation. Touch switch has no moving parts and the electronic circuitry is encapsulated to prevent liquids or other contaminants affecting its operation. Requiring 12v DC power. Finish: Clear
|
