C 011E-RF

  • C 011EN-RF
  • C 011E-RF
  • C 011E-RF
  • Polar Pattern
  • Frequency Response

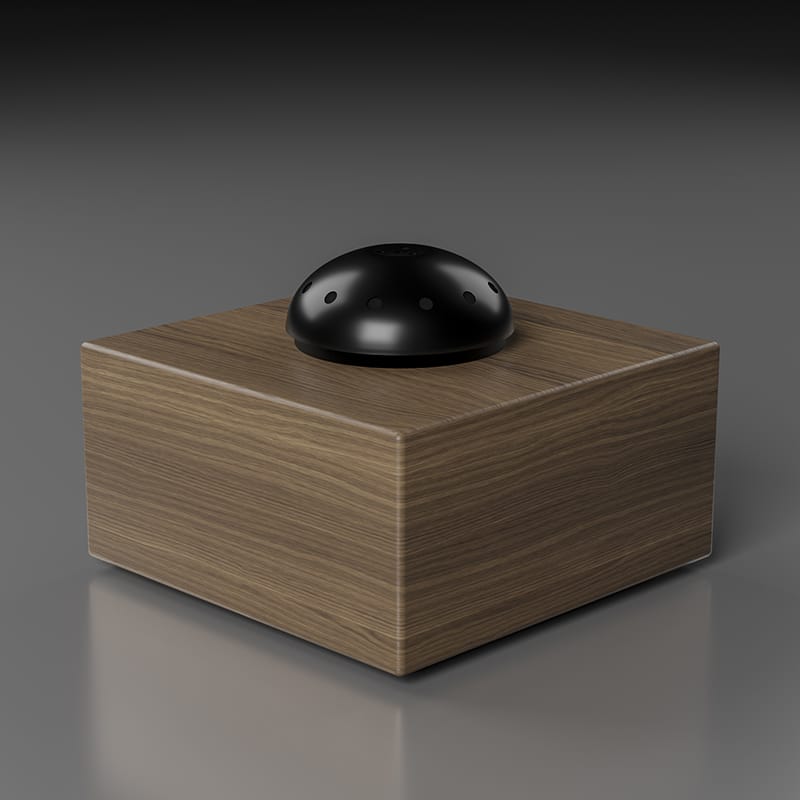

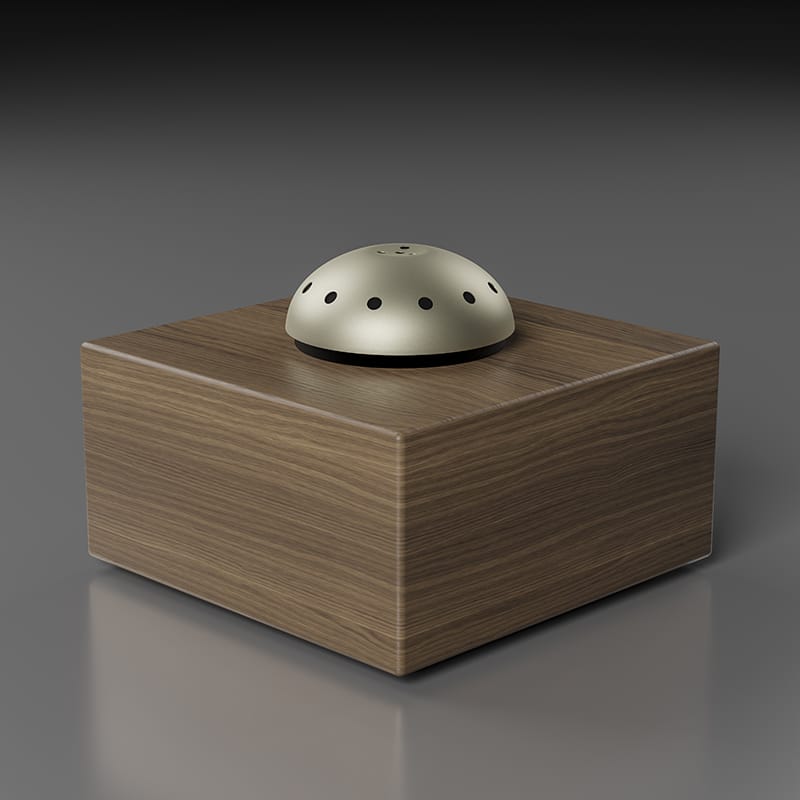

Low profile Through Table/Desk Omni-Directional Boundary Layer Microphone.

Polar Pattern Frequency Response
C 011EN-RF
Black Nickel
C 011E-RF C 011EN-RF

Low profile Through Table/Desk Omni-Directional Boundary Layer Microphone.

  • RF friendily technology offering immunity from GSM (cellphones) and other sources of frequency interference.
  • Engineered in high quality brass.
  • Omni-Directional Polar Pattern.
  • Wide smooth response.
  • Balanced output.
  • Simple through-desk shock mounting.
  • Low profile at surface level.
  • Integral Phantom Power Module.
  • Finish: Satin Black or Nickel.
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)

For 'Glossary of Terms' Click Here

Technical
Length 85mm (3.35")
Application For boardrooms,conferencing,court rooms and other such venues.
Type Condenser (back electret)
Polar Pattern Omni-directional
Frequency Response 50 Hz - 20 KHz
Sensitivity -42dB +/- 3dB at 1 KHz (OdB = 1 V/Pa)
Impedance 200 Ohms
S/N Ratio 58dB(A)
Maximum Sound Pressure Level 120db at 1KHz 1% T.H.D.
Power Requirements 9 - 48 volts phantom power
Termination Male 3 pin XLR
Finish Satin Black or Nickel.
Dimensions Hole cut out diameter 24mm (0.94") Head Dia:30.00mm (1.18")
Weight 112g (3.95oz)
Architects and engineer specifications The condenser microphone is a through desk/ceiling/panel mount boundary layer type with an omni-directional polar pattern. The microphone is made from a robust high quality brass construction with low profile brass top. It is terminated with a male 3 Pin XLR. The microphone is fitted with an integral Phantom Power Module accepting 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response 50 Hz to 20 KHz; Sensitivity -42dB +/- 3dB @ 1Khz (0dB=1V/Pa) Impedance 200 Ohms. Total Harmonic Distortion (THD) at an operating level of 120dB is no greater than 1%. Included are rubber isolators to minimise the transfer of mechanical noise from table, ceiling or panel. Finish: Satin Black or Nickel.
