Digital Motorised Retracta back electret Condenser Microphone.

Polar Pattern Frequency Response
ARM 102N-RF ARM 102N-RF
ARM 102N-RF ARMF 102N-RF
Black Nickel
ARM 102-RF ARM 102N-RF
ARMF 102-RF ARMF 102N-RF

Digital Motorised Retracta back electret Condenser Microphone.

  • Motorised Low Profile Through Table Boundary Layer Microphone.
  • Cardioid Polar Pattern.
  • Patent pending No. 1109720.1
  • Finish: Black Nextel® or Satin Nickel.
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)

For 'Glossary of Terms' Click Here

Technical
Application Designed for superior quality voice reproduction in venues such as boardrooms,conferencing,court rooms and other such venues.
Type Condenser (back electret)
Polar Pattern Cardioid
Frequency Response 50Hz - 18 KHz
Sensitivity -37dB +/- 3dB @ 1 KHz (0dB = 1 V/Pa)
Impedance 200 Ohms
S/N Ratio 69dB(A)
Maximum Sound Pressure Level 120db at 1KHz 1% T.H.D.
Power Requirements 9 - 48 volts phantom power
Termination Audio: Open ended. Motor. RJ45.
Wiring connections Black 2 core + screen Red Conductor Phase + White Conductor Phase - Screen Ground
Finish Black Nextel® or Satin Nickel.
Dimensions Length retracted: 180mm (7.1”) Extended Length: 198mm (7.8”) Diameter: 30mm (1.18").
Weight 49gms.

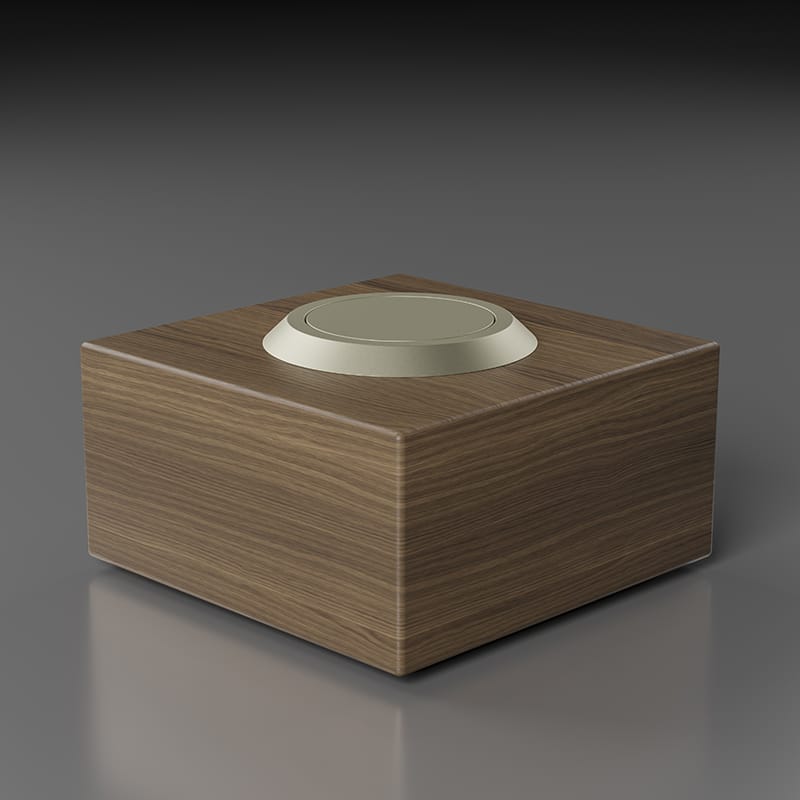

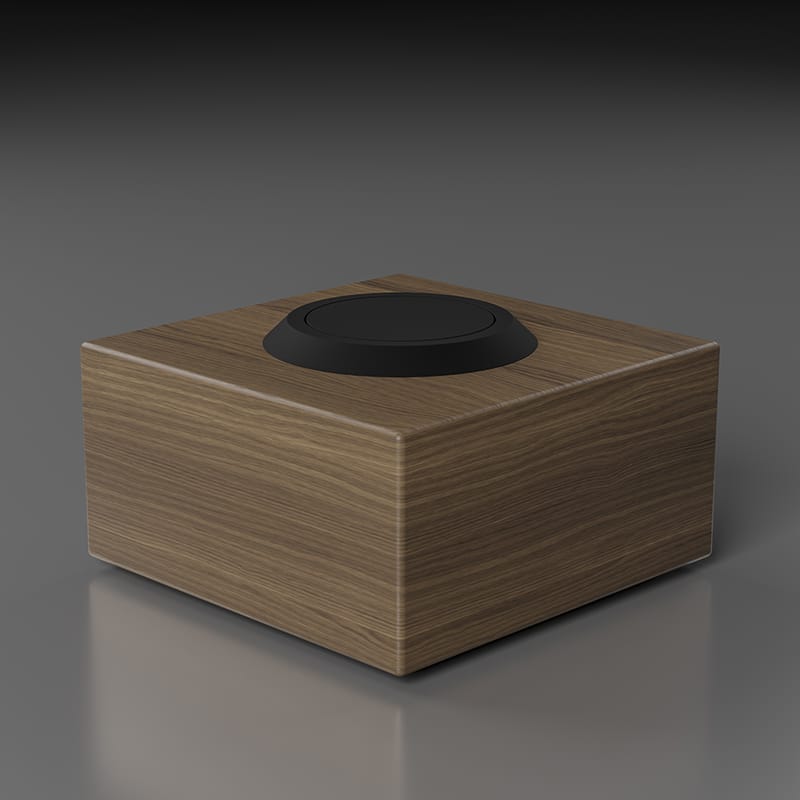

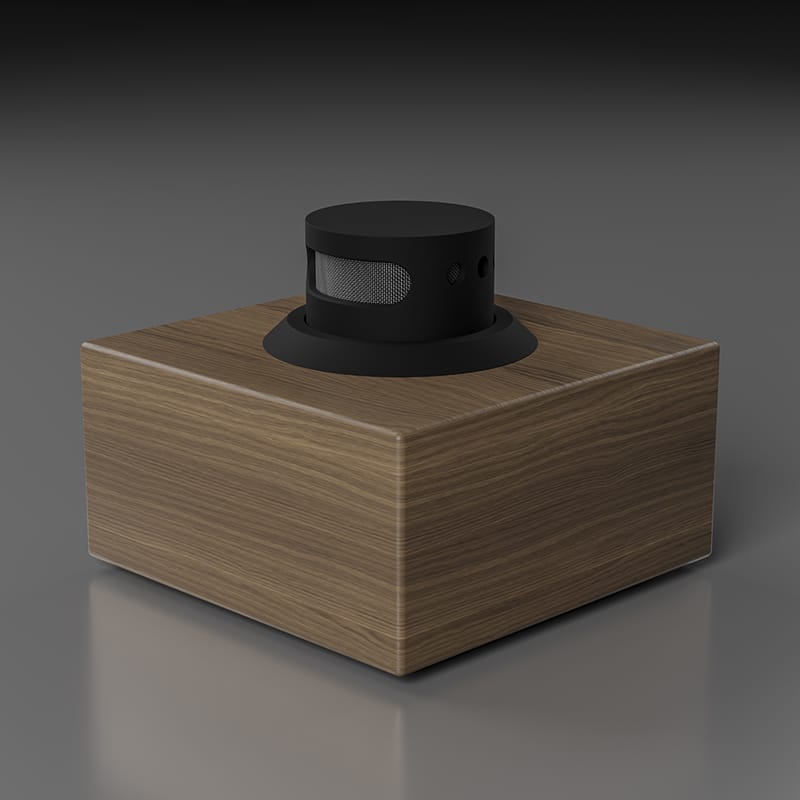

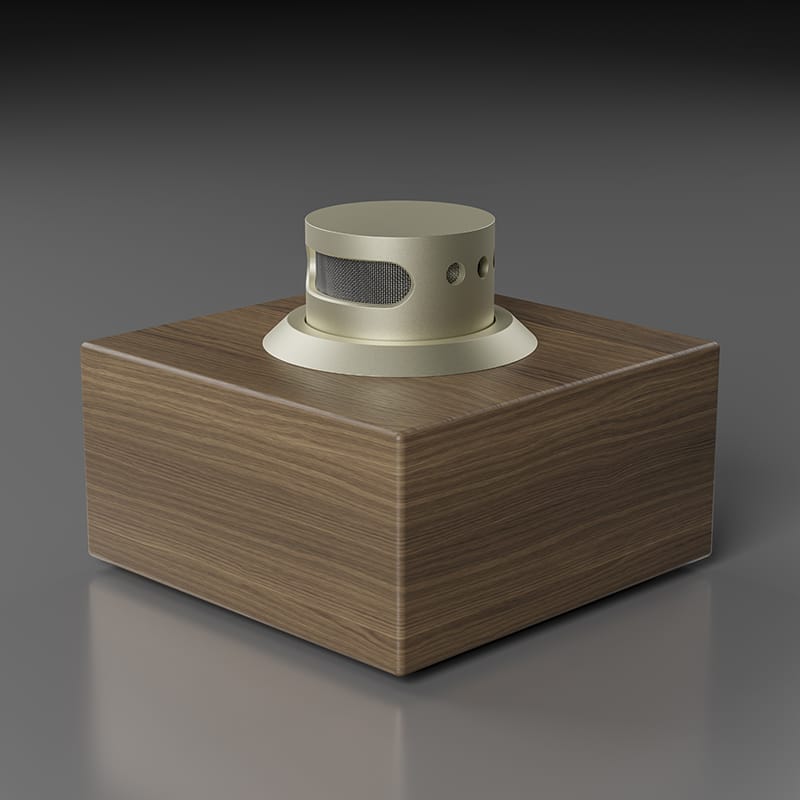

Architects and engineer specifications The Microphone is a low profile boundry layer through table design with a Cardioid polar pattern. The Microphone is motor driven and has the ability to automatically retract leaving only 3mm (0.12") protruding above the surface. The integral motor requires the control module ARM-C to operate. A control signal (+2.5V - 12V) from a DSP or Electronic Switch are required to activate the RETRACTA. The microphone is engineered in high quality brass for long life and smooth running. The Microphone has an integral electronic module which requires a 9 - 48 volt Phantom Power supply. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G), Impedance 200Ohms, Frequency Response 50Hz - 18KHz, Sensitivity -37 ± 3dB @ 1Kz (0dB = 1V/Pa), MSP 120dB THD is no greater then 1%. The Microphone connections: Audio is a 2 meter (6.6ft) open ended 2 core and screen cable. Motor control is a 2 meter (6.6ft) Cat 5 cable fitted with an RJ45. Finish: Black Nextel® or Satin Nickel.
