High performance easy installation Boundary Layer Microphone.

Polar Pattern Frequency Response
CS 1N-RF CS 2N-RF
CS 3N-RF CS 4N-RF
Black Nickel
1 element CS 1-RF CS 1N-RF
2 element CS 2-RF CS 2N-RF
3 element CS 3-RF CS 3N-RF
4 element CS 4-RF CS 4N-RF

High performance easy installation Boundary Layer Microphone..

  • Immune to RF artefacts.
  • Boundary Layer single element condenser Microphone
  • Half Cardioid Polar Pattern.
  • Fully balanced
  • Engineered in high quality brass.
  • Inbuilt Phantom Power Adaptor.
  • Finish: Black Nextel® or Satin Nickel
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)

For 'Glossary of Terms' Click Here

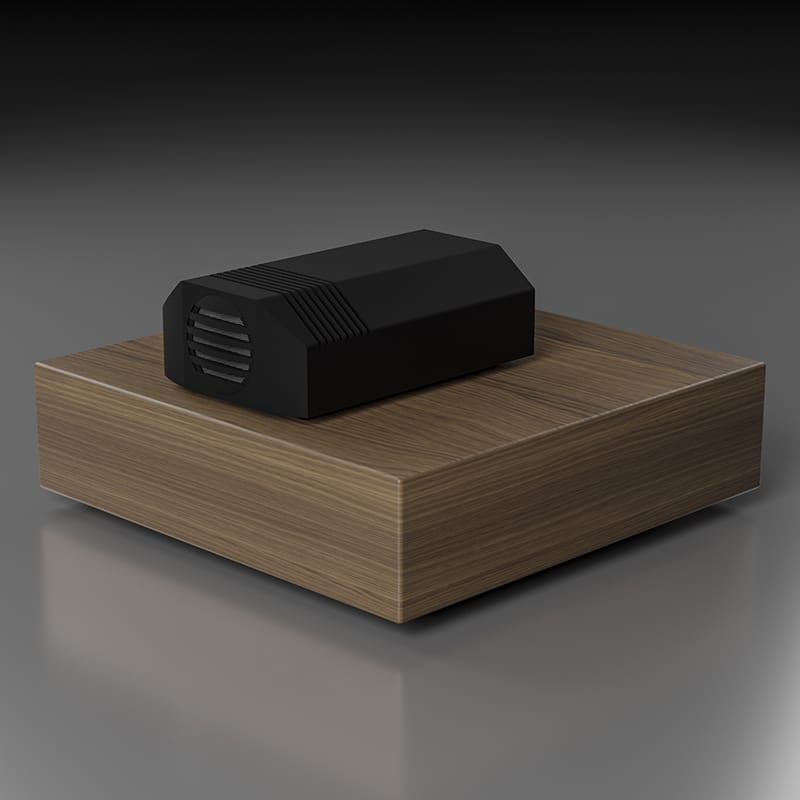

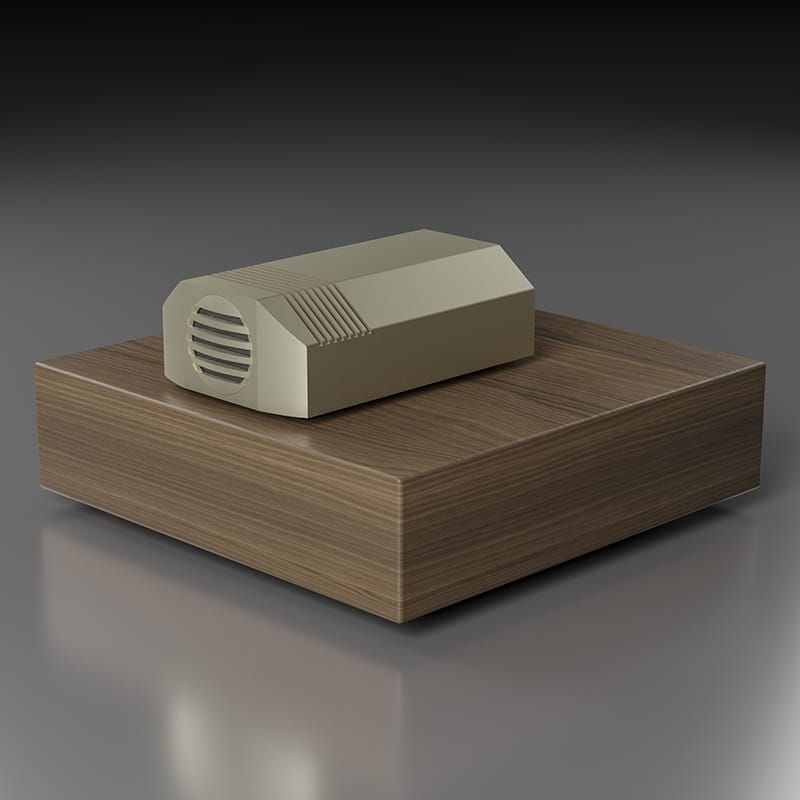

CS1-RF
Application Boundary Layer Microphone with a Half Cardioid Polar Pattern. Designed to be placed in the middle of the conference table, with the participants facing the condenser element. The design accommodates both side and bottom cable exits which means it can be used for either mobile or permanent applications. Inbuilt Phantom Power Adaptor.
Type Condenser (back electret).
Polar Pattern Half Cardioid.
Frequency Response 50 Hz - 18 KHz.
Sensitivity -37dB +/- 3dB at 1 KHz (0dB = 1 V/Pa).
Impedance 200 Ohms.
S/N Ratio 69dB (A).
Maximum Sound Pressure Level 120dB 1% THD.
Power Requirements 9 - 48 volts Phantom Power.
Termination Open ended.
Finish Black Nextel® or Satin Nickel.
Dimensions 62mm (2.4") x 44mm (1.7") x 22mm (.87").
Weight 452g (16oz.
Architects and engineer specifications The Condenser Microphone is of a single element Boundary Layer type, with a Half-Cardioid Polar Pattern. The Microphone is be made from solid brass, and capable of being permanently mounted with the use of an M 10 x 1 hollow bolt, nut and washer. The Microphone includes a 6.6 ft (2 metre) cable with Open-Ended termination. Also included is an integral Phantom Power Adaptor (PPA-RF) which accepts 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response: 50Hz to 18KHz; Sensitivity –37dB +/- 3 dB @ 1KHz (0dB = 1V/Pa) Impedance 200 Ohms. Total harmonic Distortion (THD) at an operating level of 120dB shall be no greater than 1 %. Finish: Black Nextel® or Satin Nickel.

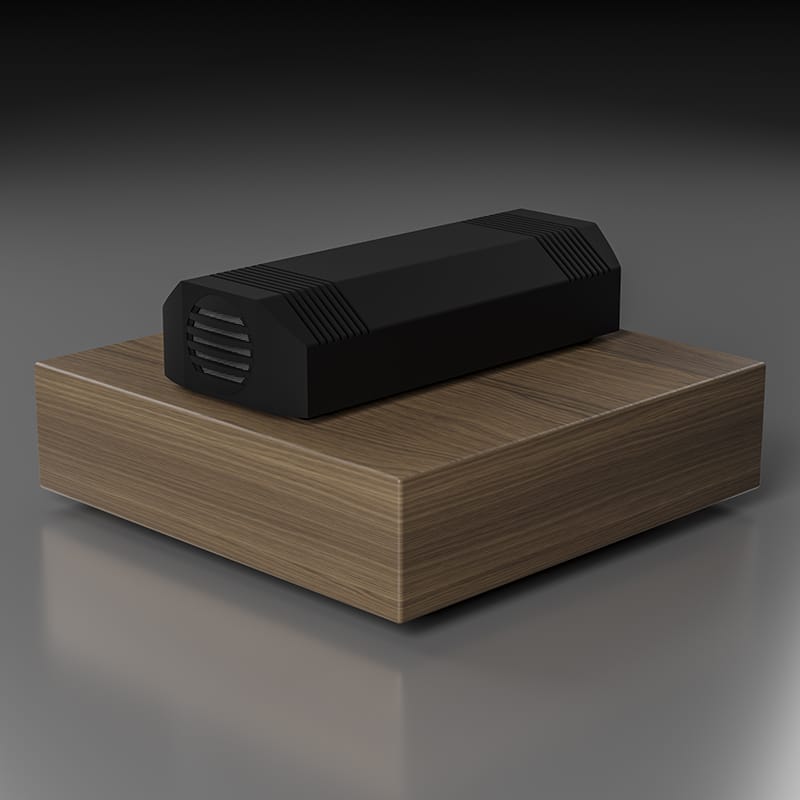

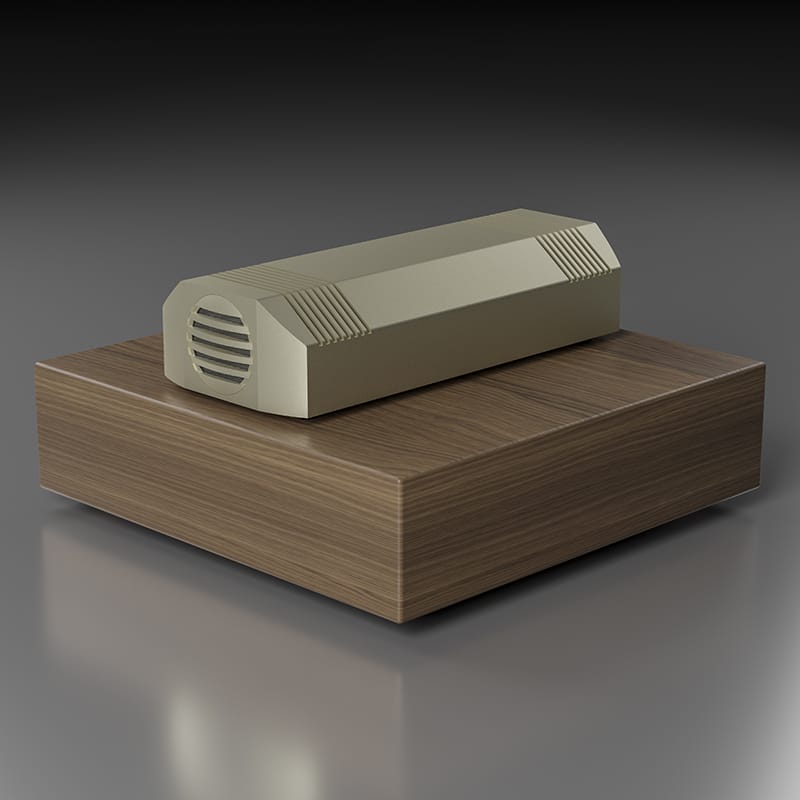

CS2-RF
Application Boundary Layer Microphone with a Half Cardioid Polar Pattern. Designed to be placed in the middle of the conference table, with the participants facing the condenser element. Inbuilt Phantom Power Adaptor.
Type Condenser (back electret).
Polar Pattern Half Cardioid.
Frequency Response 50 Hz - 18 KHz.
Sensitivity -37dB +/- 3dB at 1 KHz (0dB = 1 V/Pa).
Impedance 200 Ohms.
S/N Ratio 69dB (A).
Maximum Sound Pressure Level 120dB 1% THD.
Power Requirements 9 - 48 volts Phantom Power.
Termination Open Ended.
Finish Black Nextel® or Satin Nickel.
Dimensions 104mm (4.1") x 44mm (1.7") x 22mm (.87").
Weight 584g (20.6oz).
Architects and engineer specifications The Condenser Microphone is a dual element Boundary Layer design with a Half Cardioid Polar Pattern. The Microphone is made from solid brass and capable of being permanently mounted with the use of an M 10 x 1 hollow bolt, nut and washer. The Microphone is fitted with a 6.6 ft (2 Metres) 4 core + ground cable with Open Ended termination. Also included is an integral Phantom Power Adaptor that accepts 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response: 50Hz to 18KHz; Sensitivity –37dB +/- 3 dB @ 1KHz (0dB = 1V/Pa) Impedance 200 Ohms. Total harmonic Distortion (THD) at an operating level of 120dB no greater than 1 %. Finish: Black Nextel® or Satin Nickel.

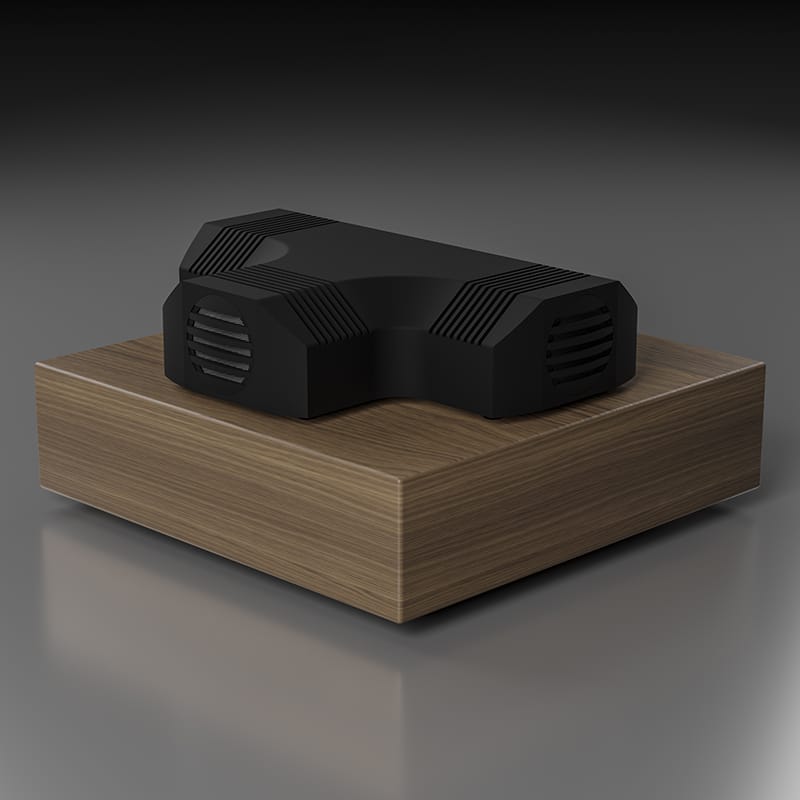

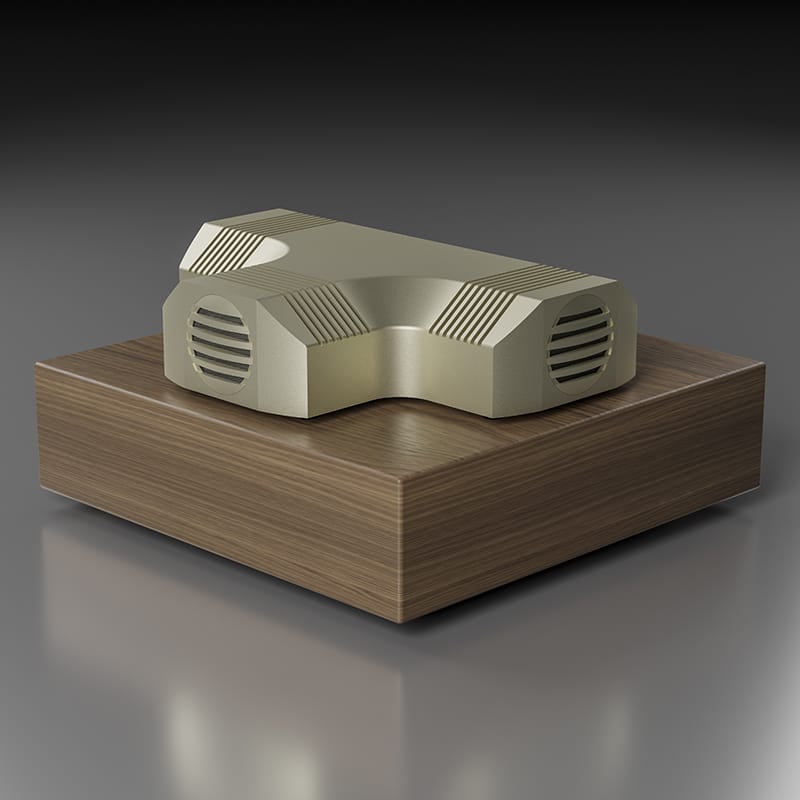

CS3-RF
Application Boundry layer microphone with a Half Cardioid Polar Pattern. Designed to be placed in the middle of the conference table, with the participants facing the condenser element. Can be permanently mounted using the hollow bolt and nut provided. Inbuilt Phantom Power Adaptor.
Type Condenser (back electret).
Polar Pattern Half Cardioid.
Frequency Response 50 Hz - 18 KHz.
Sensitivity -37dB +/- 3dB at 1 KHz (0dB = 1 V/Pa).
Impedance 200 Ohms.
S/N Ratio 69dB (A).
Maximum Sound Pressure Level 120dB 1% THD.
Power Requirements 9 - 48 volts Phantom Power.
Termination Open Ended.
Finish Black Nextel® or Satin Nickel.
Dimensions 103mm (4.1") x 75mm (3.0") x 22mm (.87").
Weight 870g (31oz).
Architects and engineer specifications The Condenser Microphone has a triple element Boundary Layer design with a Half Cardioid Polar Pattern. The Microphone is made from solid brass and capable of being permanently mounted with the use of an M 10 x 1 hollow bolt, nut and washer. The Microphone is fitted with a 6.6 ft (2 metre) cable with Open Ended termination. Also included is an integral Phantom Power Adaptor that accepts 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response: 50Hz to 18KHz; Sensitivity –37.dB +/- 3 dB @ 1KHz (0dB = 1V/Pa) Impedance 200 ohms. Total harmonic Distortion (THD) at an operating level of 120dB no greater than 1 %. Finish: Black Nextel® or Satin Nickel.

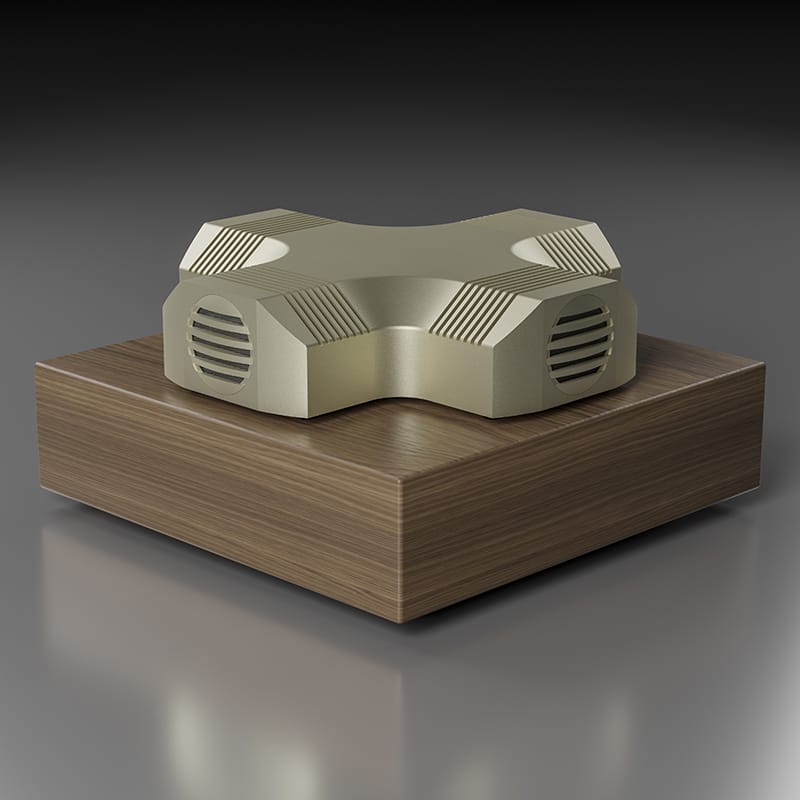

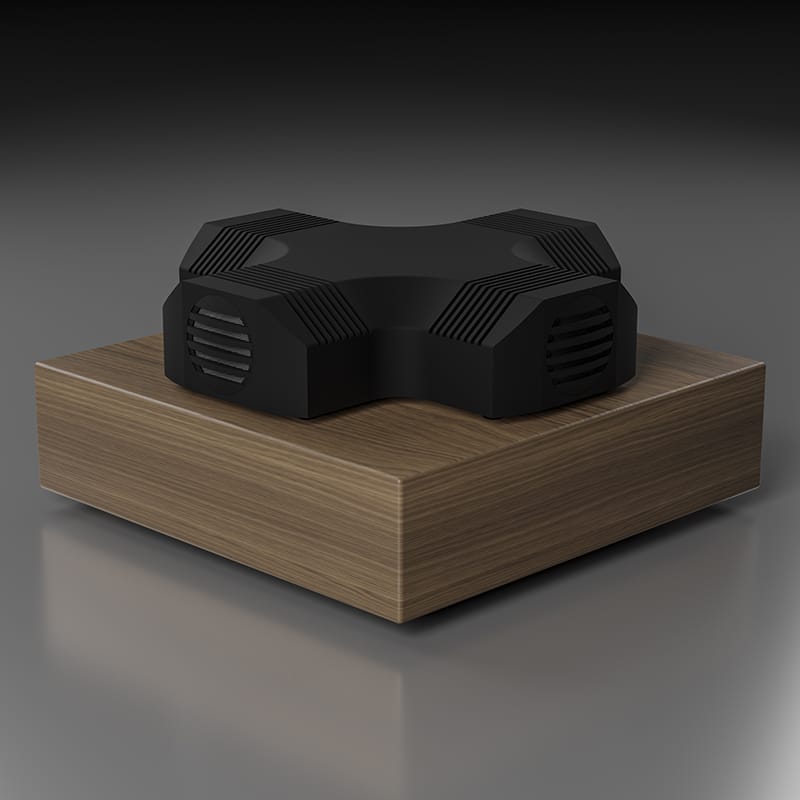

CS4-RF
Length 103mm (4.1").
Application Boundary Layer Microphone with a Half Cardioid Polar Pattern. Designed to be placed in the middle of the conference table, with the participants facing the condenser element. Can be permanently mounted using the hollow bolt and nut provided. Inbuilt Phantom Power Module.
Type Condenser (back electret).
Polar Pattern Half Cardioid.
Frequency Response 50 Hz - 18 KHz.
Sensitivity -37dB +/- 3dB at 1 KHz (0dB = 1 V/Pa).
Impedance 200 Ohms.
S/N Ratio 69dB (A).
Maximum Sound Pressure Level 120dB 1% THD.
Power Requirements 9 - 48 volts Phantom Power.
Termination Open Ended.
Finish Black Nextel® or Satin Nickel.
Dimensions 103mm (4.1") x 103mm (4.1") x 22mm (.87").
Weight 910g (32.2oz).
Architects and engineer specifications The Condenser Microphone is a quad element Boundary Layer type with a Half Cardioid Polar Pattern. The Microphone is made from solid brass and capable of being permanently mounted with the use of an M 15 x 1 hollow bolt and nut. The Microphone is fitted with a 6.6 ft (2 metre) cable is provided with Open Ended termination. Included are four integral Phantom Power Adaptors that accepts 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response: 50Hz to 18KHz; Sensitivity –37dB +/- 3 dB @ 1KHz (0dB = 1V/Pa) Impedance 200 Ohms. Total harmonic Distortion (THD) at an operating level of 120dB is no greater than 1 %. Finish: Black Nextel® or Satin Nickel.
