Through Table Cardioid Boundary Layer Microphone.

Polar Pattern Frequency Response
C 012EN-RF C 012EN-RF

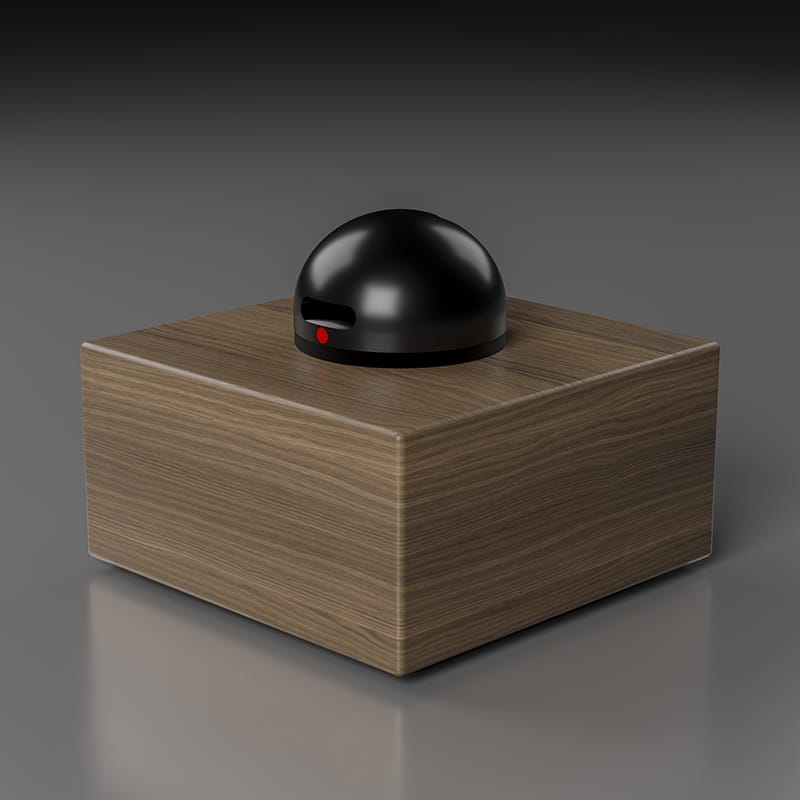

Black Nickel
C 012E-RF C 012EN-RF

Through Table Cardioid Boundary Layer Microphone.

  • RF friendily technology offering immunity from GSM (cellphones) and other sources of frequency interference
  • Engineered in high quality Brass.
  • Cardioid Polar Pattern.
  • Wide smooth response.
  • Balanced output.
  • Simple through-desk shock mounting.
  • Low profile at surface level.
  • Inbuilt Phantom Power Module.
  • Finish: Satin Black or Nickel.
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)

For 'Glossary of Terms' Click Here

Technical
Length 90.00mm (3.55")
Application For boardrooms,conferencing,court rooms and other such venues.
Type Condenser (back electret)
Polar Pattern cardioid
Frequency Response 50Hz - 18 KHz
Sensitivity -37dB +/- 3dB @ 1 KHz (0dB = 1 V/Pa)
Impedance 200 Ohms
S/N Ratio 69dB(A)
Maximum Sound Pressure Level 120db at 1KHz 1% T.H.D.
Power Requirements 9 - 48 volts phantom power
Termination Male 3 Pin XLR
Finish Satin Black or Nickel.
Dimensions Hole cut out Diameter: 24mm (0.94") Head Diameter:28.00mm (1.10")
Weight 126g (4.45 oz)
Architects and engineer specifications The condenser microphone design is for a through desk/ceiling/panel mount boundary layer type with a cardioid polar pattern. The microphone is made of a robust high quality brass construction with a low profile robust brass top. It is terminated with a male 3 Pin XLR. The microphone is powered by a 9 to 48 volts phantom power adaptor. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response 50 Hz to 18 KHz; Sensitivity -37dB +/- 3dB @ 1Khz (0dB=1V/Pa) Impedance 200 Ohms. Total harmonic distortion (THD) at an operating level of 120dB is no greater than 1%. Also included are rubber shock mounts to minimize the transfer of mechanical noise from table, ceiling or panel. Length 90.00mm (3.55"). Finish: Satin Black or Nickel.
