The Consultant Boundary Series with inbuilt electronic touch sensitive switch. Developed to minimise the number of Microphones on the conference table whilst maintaining high performance and ease of installation.

Polar Pattern Frequency Response
CS 1SN-RF CS 2SN-RF
CS 3SN-RF CS 4SN-RF
Black Nickel
1 element CS 1S-RF RGB CS 1SN-RF RGB
2 element CS 2S-RF RGB CS 2SN-RF RGB
2 element CS 2SV-RF RGB CS 2SVN-RF RGB
3 element CS 3S-RF RGB CS 3SN-RF RGB
4 element CS 4S-RF RGB CS 4SN-RF RGB

The Consultant Boundary Series with inbuilt electronic touch sensitive switch. Developed to minimise the number of Microphones on the conference table whilst maintaining high performance and ease of installation.

  • Immune to RF artefacts.
  • Half cardioid Polar Pattern.
  • Inbuilt electronic capacitive touch switch with RGB Halo ring.
  • Fully balanced.
  • Engineered in high quality brass.
  • Inbuilt Phantom Power Adaptor.
  • Terminated with RJ 45 via TS-C1 for switching.
  • Finish: Black Nextel® or Satin Nickel.
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)

For 'Glossary of Terms' Click Here

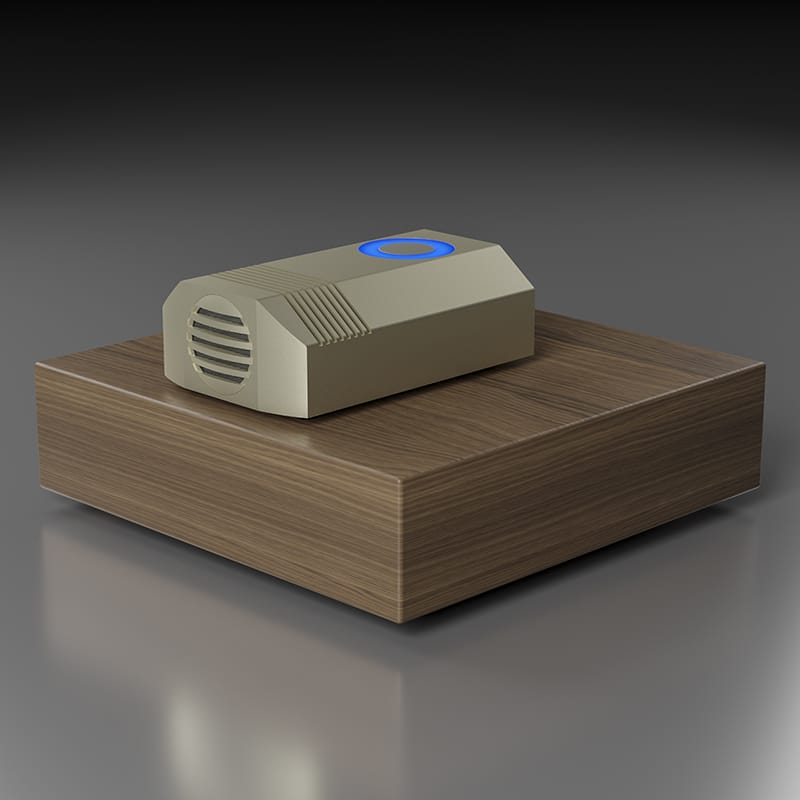

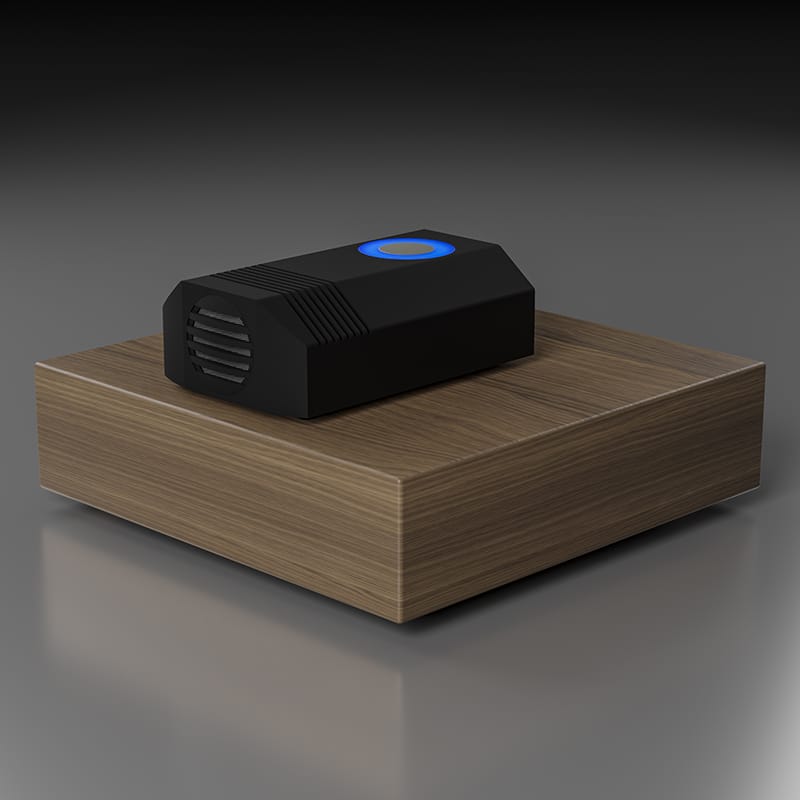

CS1S-RF RGB
Application Boundary Layer Microphone with a Half Cardioid Polar Pattern. Designed to be placed in the middle of the conference table, with the participants facing the condenser element. Inbuilt Phantom Power Module.
Type Condenser (back electret).
Polar Pattern Half Cardioid.
Frequency Response 50 Hz - 18 KHz.
Sensitivity -37dB +/- 3dB at 1 KHz (0dB = 1 V/Pa).
Impedance 200 Ohms.
S/N Ratio 69dB (A).
Maximum Sound Pressure Level 120dB 1% THD.
Power Requirements 9 - 48 volts Phantom Power.
Termination Open ended for audio. RJ 45 via TS-C1 for switching.
Finish Black Nextel® or Satin Nickel.
Dimensions 70mm (2.76") x 44mm (1.7") x 22mm (.87")
Weight 458g (16oz)
Supplied Accessories TS-C1
Architects and engineer specifications The Condenser Microphone is a single element Boundary Layer design with a Half Cardioid Polar Pattern. An inbuilt touch sensitive capacitive switch with RGB Halo allowing local switching Live / Muting of the Microphone. The Touch switch requires connection to TS-C1 then to an external DSP. The Microphone is made from solid brass and is permanently mounted with the use of an M 20 x 1 bolt and nut. The Microphone is fitted with a 6.6ft (2 Metres) cable with Open Ended termination. Also included is an integral Phantom Power Adaptor that accepts 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response: 50Hz to 18 KHz; Sensitivity –37dB +/- 3 dB @ 1 KHz (0dB = 1V/Pa) Impedance 200 Ohms. Total harmonic Distortion (THD) at an operating level of 120dB no greater than 1 %. Finish: Black Nextel® or Satin Nickel.

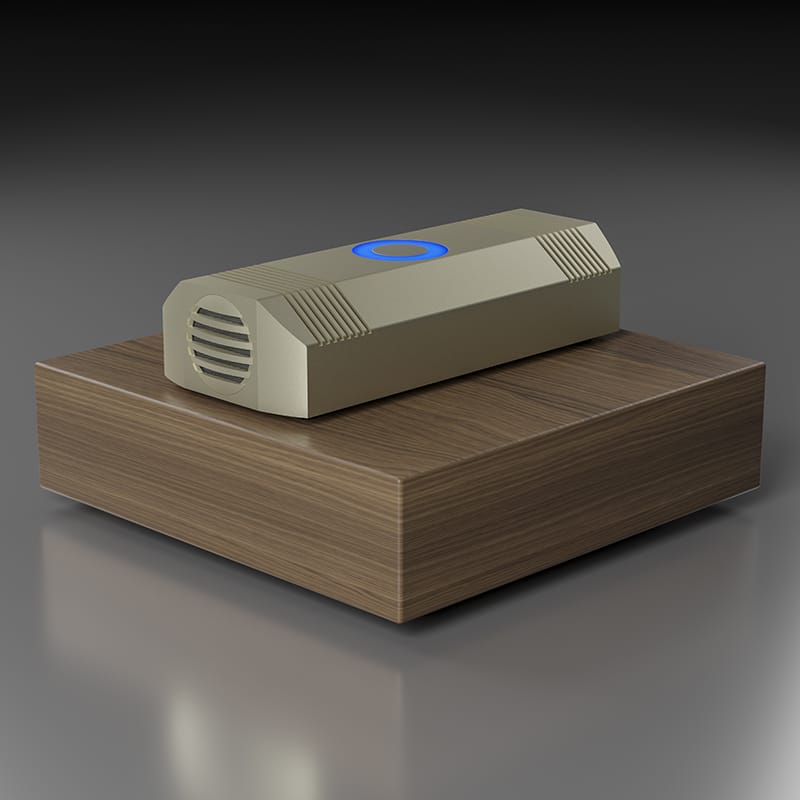

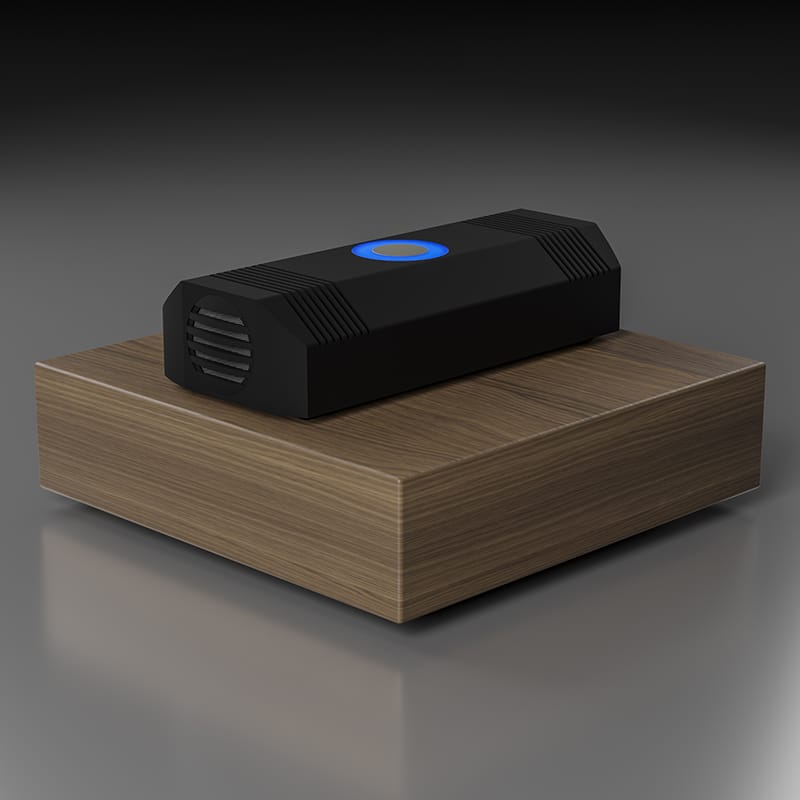

CS2S-RF RGB
Application Boundary Layer Microphone with a Half Cardioid Polar Pattern. Designed to be placed in the middle of the conference table, with the participants facing the condenser element. Inbuilt Phantom Power Module.
Type Condenser (back electret).
Polar Pattern Half Cardioid.
Frequency Response 50 Hz - 18 KHz.
Sensitivity -37dB +/- 3dB at 1 KHz (0dB = 1 V/Pa).
Impedance 200 Ohms.
S/N Ratio 69dB (A).
Maximum Sound Pressure Level 120dB 1% THD.
Power Requirements 9 - 48 volts Phantom Power.
Termination Open ended for audio. RJ 45 via TS-C1 for switching.
Finish Black Nextel® or Satin Nickel.
Dimensions 104mm (4.1") x 44mm (1.7") x 22mm (.87").
Weight 629gms (22.2 oz).
Supplied Accessories TS-C1
Architects and engineer specifications The Condenser Microphone is a dual element Boundary Layer design with a Half Cardioid Polar Pattern. An inbuilt touch sensitive capacitive switch with RGB Halo allowing local switching Live / Muting of the Microphone. The Touch switch requires connection to TS-C1 then to an external DSP. The Microphone is made from solid brass and is permanently mounted with the use of an M 20 x 1 bolt and nut. The Microphone is fitted with a 6.6ft (2 Metres) cable with Open Ended termination. Also included is an integral Phantom Power Adaptor that accepts 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response: 50Hz to 18 KHz; Sensitivity –37dB +/- 3 dB @ 1 KHz (0dB = 1V/Pa) Impedance 200 Ohms. Total harmonic Distortion (THD) at an operating level of 120dB no greater than 1 %. Finish: Black Nextel® or Satin Nickel.

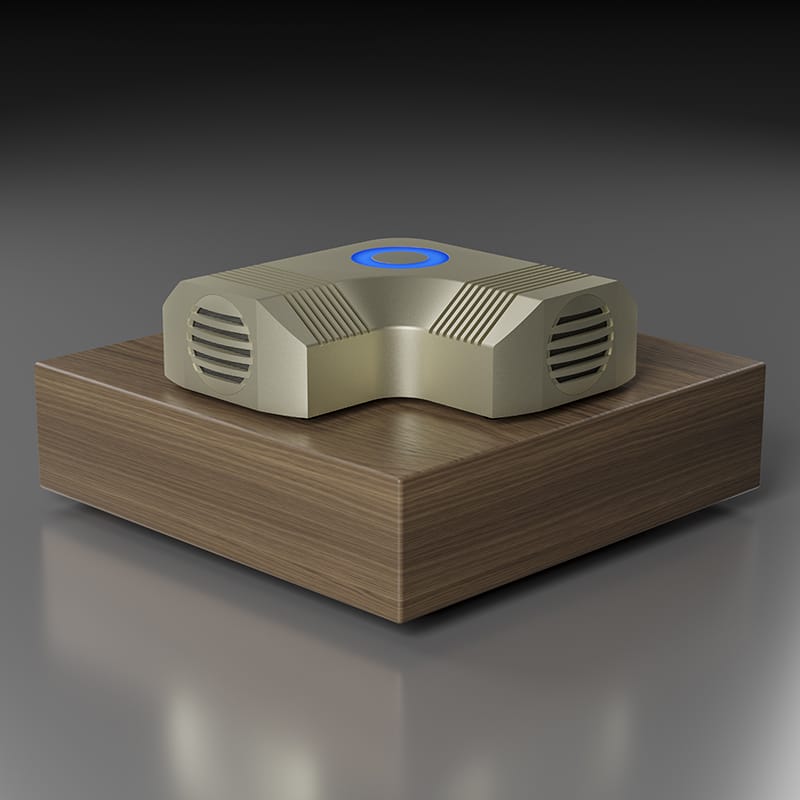

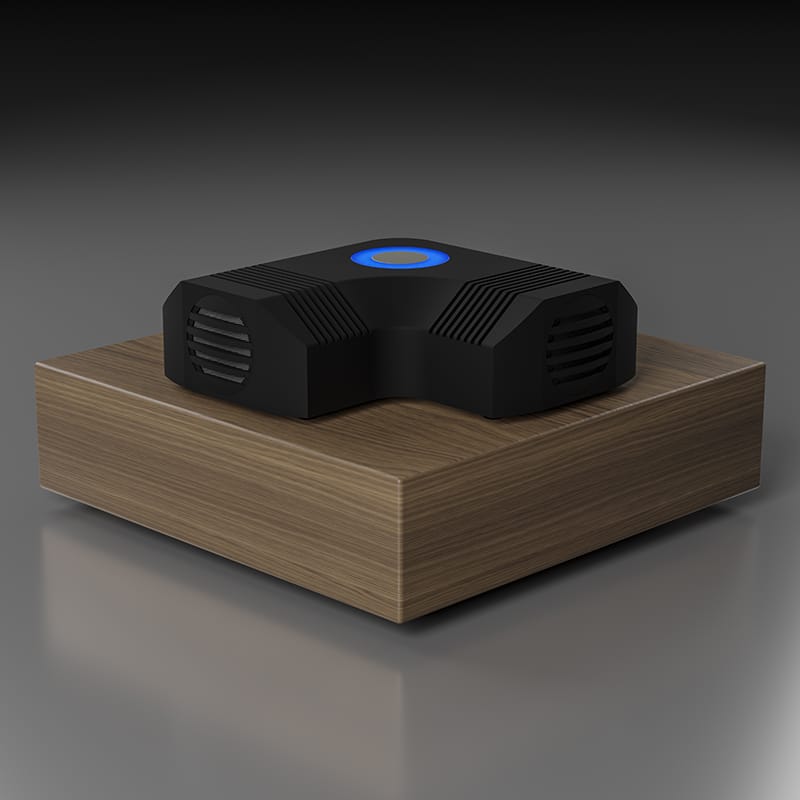

CS2SV-RF RGB
Application Dual element boundary layer V-Shaped Microphone with a Half Cardioid Polar Pattern on each element. Designed to be used as a Stereo boundary microphone with the CUI-2 mic interface or other stereo-capable microphone interfaces. Can also be used in the corner of a boardroom table to cover up to 4 participants (2+2) in that corner, with the participants facing the condenser element. Inbuilt Phantom Power Module.
Type Condenser (back electret).
Polar Pattern Half Cardioid.
Frequency Response 50 Hz - 18 KHz.
Sensitivity -37dB +/- 3dB at 1 KHz (0dB = 1 V/Pa).
Impedance 200 Ohms.
S/N Ratio 69dB (A).
Maximum Sound Pressure Level 120dB 1% THD.
Power Requirements 9 - 48 volts Phantom Power.
Termination Open ended for audio. RJ 45 via TS-C1 for switching.
Finish Black Nextel® or Satin Nickel.
Dimensions 104mm (4.1") x 75mm (1.7") x 22mm (.87").
Weight 693gms (24.5 oz).
Supplied Accessories TS-C1
Architects and engineer specifications The Condenser Microphone is a dual element / Stereo Boundary Layer design with a Half Cardioid Polar Pattern. An inbuilt touch sensitive capacitive switch with RGB Halo allowing local switching Live / Muting of the Microphone. The Touch switch requires connection to TS-C1 then to an external DSP. The Microphone is made from solid brass and is permanently mounted with the use of an M 20 x 1 bolt and nut. The Microphone is fitted with a 6.6ft (2 Metres) cable with Open Ended termination. Also included is an integral Phantom Power Adaptor that accepts 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response: 50Hz to 18 KHz; Sensitivity –37dB +/- 3 dB @ 1 KHz (0dB = 1V/Pa) Impedance 200 Ohms. Total harmonic Distortion (THD) at an operating level of 120dB no greater than 1 %. Finish: Black Nextel® or Satin Nickel.
CS3S-RF RGB
Application Boundary Layer Microphone with a Half Cardioid Polar Pattern. Designed to be placed in the middle of the conference table, with the participants facing the condenser element. Inbuilt Phantom Power Module.
Type Condenser (back electret).
Polar Pattern Half Cardioid.
Frequency Response 50 Hz - 18 KHz.
Sensitivity -37dB +/- 3dB at 1 KHz (0dB = 1 V/Pa).
Impedance 200 Ohms.
S/N Ratio 69dB (A).
Maximum Sound Pressure Level 120dB 1% THD.
Power Requirements 9 - 48 volts Phantom Power.
Termination Open ended for audio. RJ 45 via TS-C1 for switching.
Finish Black Nextel® or Satin Nickel.
Dimensions 104mm (4.1") x 44mm (1.7") x 22mm (.87").
Weight 804g (28.4oz).
Supplied Accessories TS-C1
Architects and engineer specifications The Condenser Microphone is a triple element Boundary Layer design with a Half Cardioid Polar Pattern. An inbuilt touch sensitive capacitive switch with RGB Halo allowing local switching Live / Muting of the Microphone. The Touch switch requires connection to TS-C1 then to an external DSP. The Microphone is made from solid brass and is permanently mounted with the use of an M 20 x 1 bolt and nut. The Microphone is fitted with a 6.6ft (2 Metres) cable with Open Ended termination. Also included is an integral Phantom Power Adaptor that accepts 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response: 50Hz to 18 KHz; Sensitivity –37dB +/- 3 dB @ 1 KHz (0dB = 1V/Pa) Impedance 200 Ohms. Total harmonic Distortion (THD) at an operating level of 120dB no greater than 1 %. Finish: Black Nextel® or Satin Nickel.

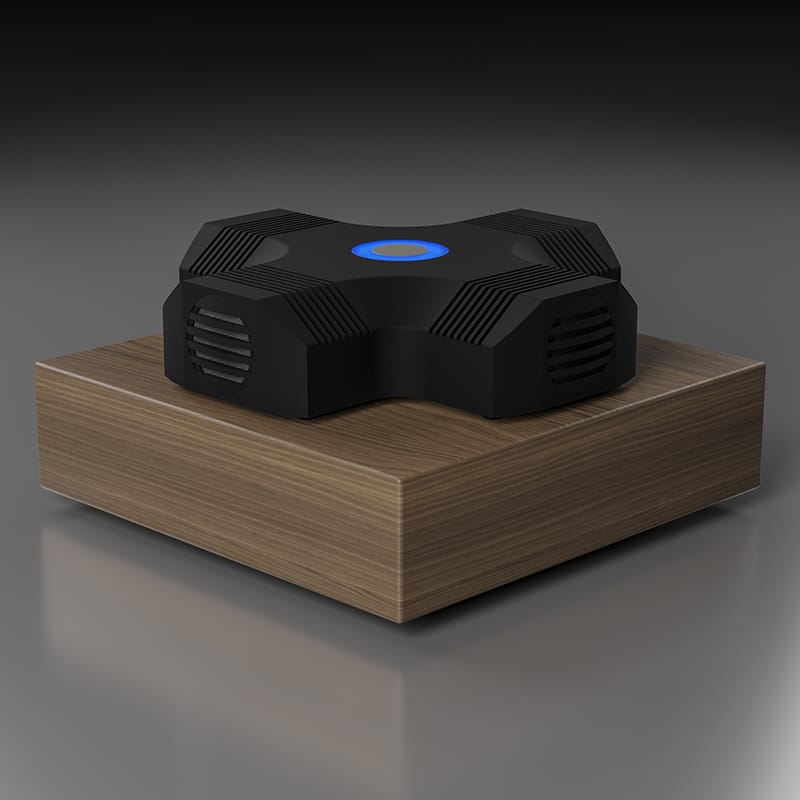

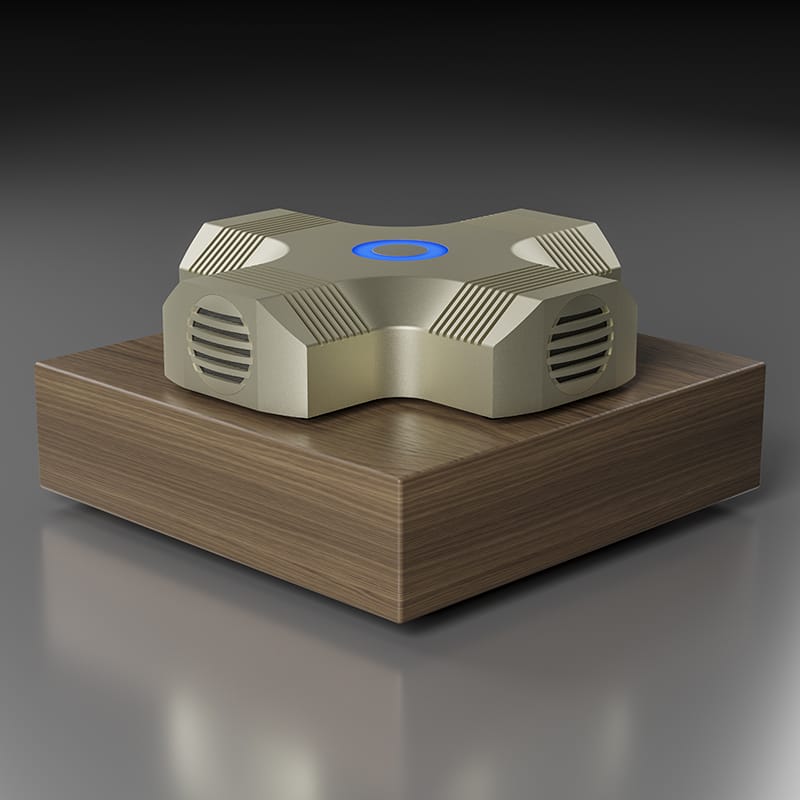

CS4S-RF RGB
Application Boundary Layer Microphone with a Half Cardioid Polar Pattern. Designed to be placed in the middle of the conference table, with the participants facing the condenser elements. Inbuilt Phantom Power Adaptor.
Type Condenser (back electret).
Polar Pattern Half Cardioid.
Frequency Response 50 Hz - 18 KHz.
Sensitivity -37dB +/- 3dB at 1 KHz (0dB = 1 V/Pa).
Impedance 200 Ohms.
S/N Ratio 69dB (A).
Maximum Sound Pressure Level 120dB 1% THD.
Power Requirements 9 - 48 volts Phantom Power.
Termination Open ended for audio. RJ 45 via TS-C1 for switching.
Finish Black Nextel® or Satin Nickel.
Dimensions 103mm (4.1") x 103mm (4.1") x 22mm (.87").
Weight 904g (31.9oz).
Supplied Accessories TS-C1
Architects and engineer specifications The Condenser Microphone is a quad element Boundary Layer design with a Half Cardioid Polar Pattern. An inbuilt touch sensitive capacitive switch with RGB Halo allowing local switching Live / Muting of the Microphone. The Touch switch requires connection to TS-C1 then to an external DSP. The Microphone is made from solid brass and is permanently mounted with the use of an M 20 x 1 bolt and nut. The Microphone is fitted with a 6.6ft (2 Metres) cable with Open Ended termination. Also included is an integral Phantom Power Adaptor that accepts 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G). Frequency response: 50Hz to 18 KHz; Sensitivity –37dB +/- 3 dB @ 1 KHz (0dB = 1V/Pa) Impedance 200 Ohms. Total harmonic Distortion (THD) at an operating level of 120dB no greater than 1 %. Finish: Black Nextel® or Satin Nickel.
