SM 80S SERIES



Through Table Microphone Shock Mount with Latching or PTT Switch.

  • All-metal construction.

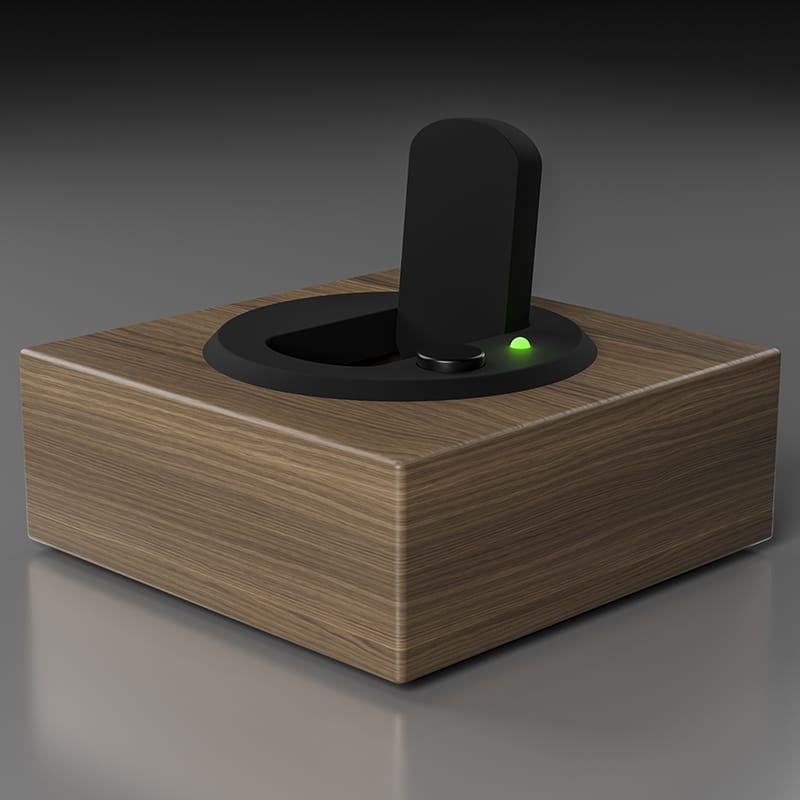

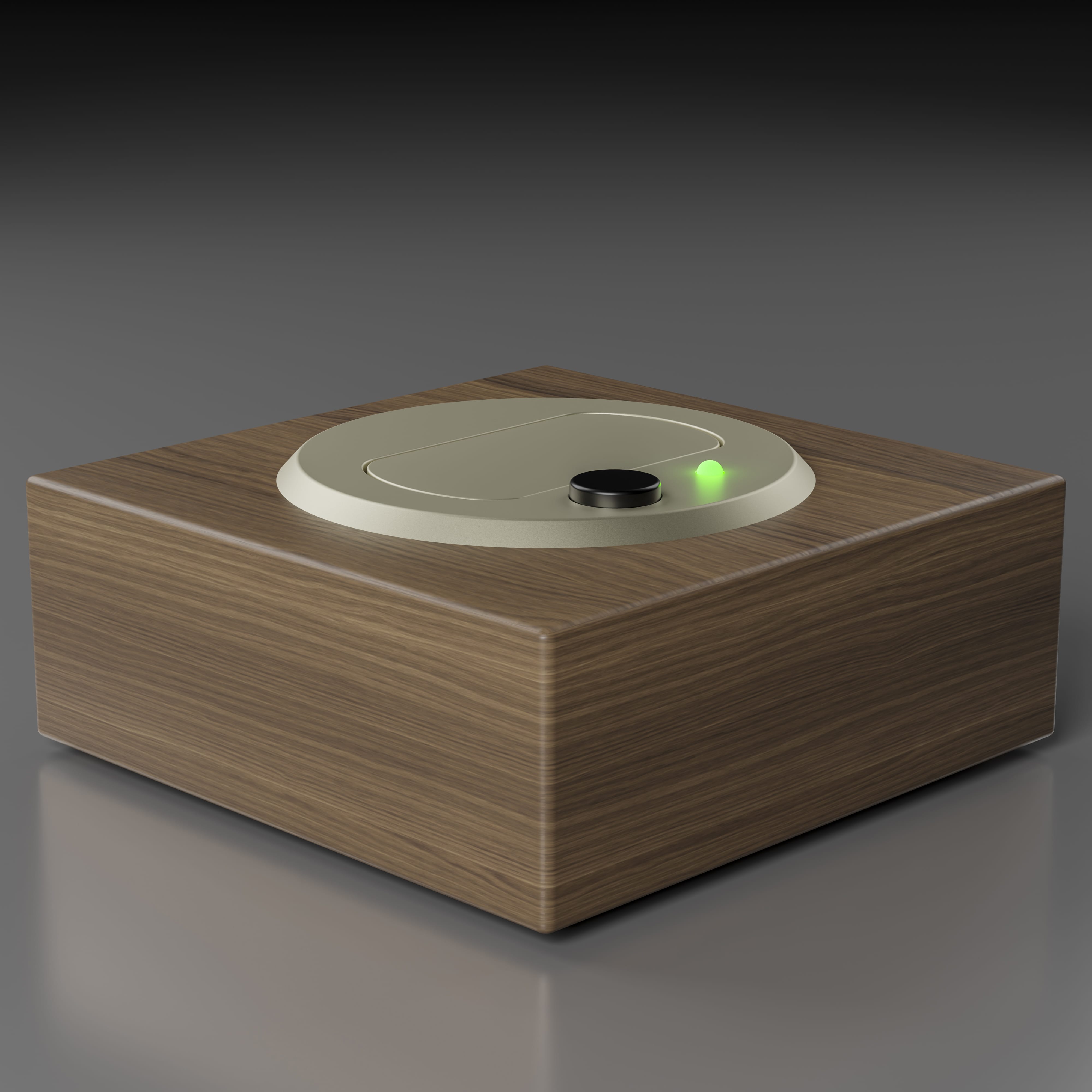

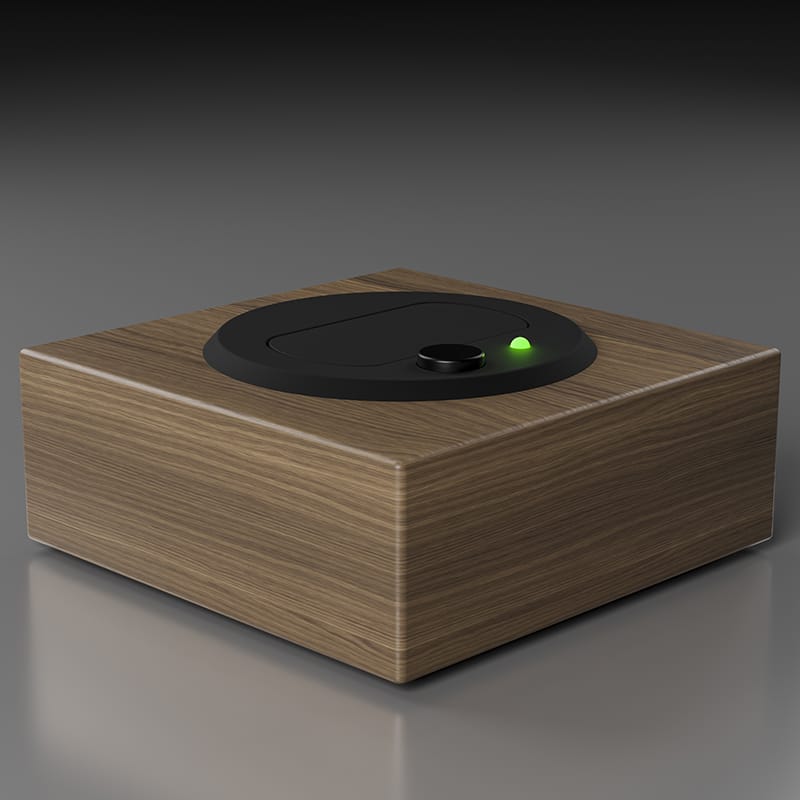

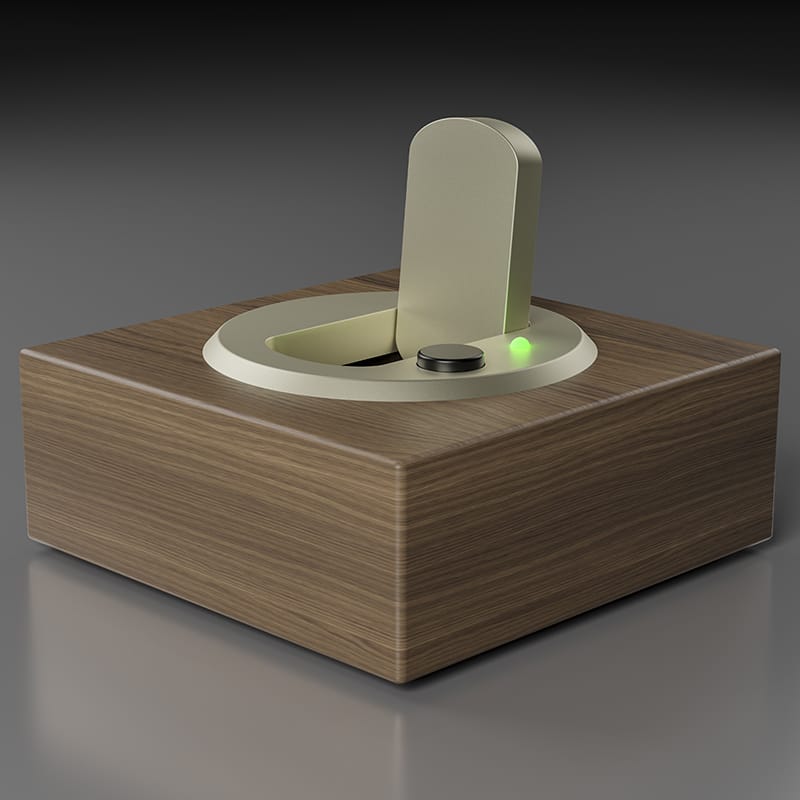

  • A hinged flap allows the unit to sit almost flush to a table.
  • Simple push / click fit allows a Microphone to be removed quickly and easily so that the table can be used for other matters.
  • Provided with a mechanical switch configured for Latching or PPT (Push to Talk)
  • Bi-colour LED indicator is fitted to the base.
  • Finish: Black Nextel® or Satin Nickel.
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)

For 'Glossary of Terms' Click Here

SM 80S LATCH
Application Low profile Through Table Shock Mount with Latching switch and Bi-Color LED indicator.
Termination 3 Pin Female XLR
Finish Black Nextel® or Satin Nickel.
Dimensions Height Above Surface: 3mm (0.18") Diameter: 58mm (2.28") Body Diameter: 51mm (2") Body Below Surface - XLR version: 61mm (2.4")
Architects and engineer specifications The Microphone Mount is of an all-metal construction with an overall diameter of 58mm/ 2.28”. A hinged flap allows the unit to sit almost flush to a table once the Microphone has been disconnected allowing the table to be used for other matters. A mechanical switch has been configured for Latching. Bi-colour LED indicator is fitted to the base accepting 5, 12 or 24Vdc @ 30mA. Finish: Black Nextel® or Satin Nickel.
SM 80SX5 LATCH
Application Low profileThrough Table Shock Mount fitted with 5 Pin XLR Female Connector, Latching switch and Bi-Color LED indicator.
Termination 5 Pin Female XLR.
Finish Black Nextel® or Satin Nickel.
Dimensions Height Above Surface: 3mm (0.18") Diameter: 58mm (2.28") Body Diameter: 51mm (2") Body Below Surface - XLR version: 61mm (2.4")
Architects and engineer specifications The Through Table Microphone Mount is of an all-metal construction with an overall diameter of 58mm/ 2.28”. A hinged flap allows the unit to sit almost flush to a table once the Microphone has been disconnected allowing the table to be used for other matters. It comes complete with a 5 Pin Female XLR Connector allowing all 5 Pin Clockaudio “E” version Microphones to be used. A mechanical Latching Switch and Bi-colour LED indicator is fitted to the base accepting 5, 12 or 24Vdc @ 30mA with switch configurations for latching. LED Voltage: Jumpers allow 5 – 12 or 24 Volt connection. Finish: Black Nextel® or Satin Nickel.
SM 80S-RF LATCH
Application Low profile table Shock Mount Termination Input - 3 pin TA 3MB Male Tini Q Connector and Output – 3 PinMale XLR and phantom power adaptor, latching switch and bi-colour LED is provided.
Termination Tini Q / 3 Pin XLR
Finish Black Nextel® or Satin Nickel.
Dimensions Height Above Surface: 3mm (0.18") Diameter: 58mm (2.28") Body Diameter: 51mm (2") Body Below Surface - XLR version: 61mm (2.4")
Architects and engineer specifications The Through Table Microphone Mount is of an all metal construction. A hinged flap allows the unit to sit almost flush to a table once the Microphone has been disconnected, allowing the table to be used for other matters. It is supplied with a dedicated Phantom Power Adaptor designed to power the C 3100 miniature Gooseneck Microphones terminated with Tini Q (mini XLR) 3 Pin connectors. The Phantom power Adaptor accepts 9 to 48 volts DC and has an impedance of 200 Ohms. The Phantom Power Adaptor includes filters, which will eliminate all GSM frequencies from 900-1200 MHz and is terminated with a male 3 pin XLR. A latching switch and a Bi-colour LED indicator is fitted to the base accepting 5, 12 or 24Vdc @ 30mA. Overall diameter of 58mm/ 2.28”. Finish: Black Nextel® or Satin Nickel.
