SM 80 SERIES



Through Table Microphone Shock Mount.

3-pin 5-pin Tiny Q
SM 80 SM 80 X5 SM 80-RF
SM 80N SM 80NX5 SM 80N-RF

Through Table Microphone Shock Mount.

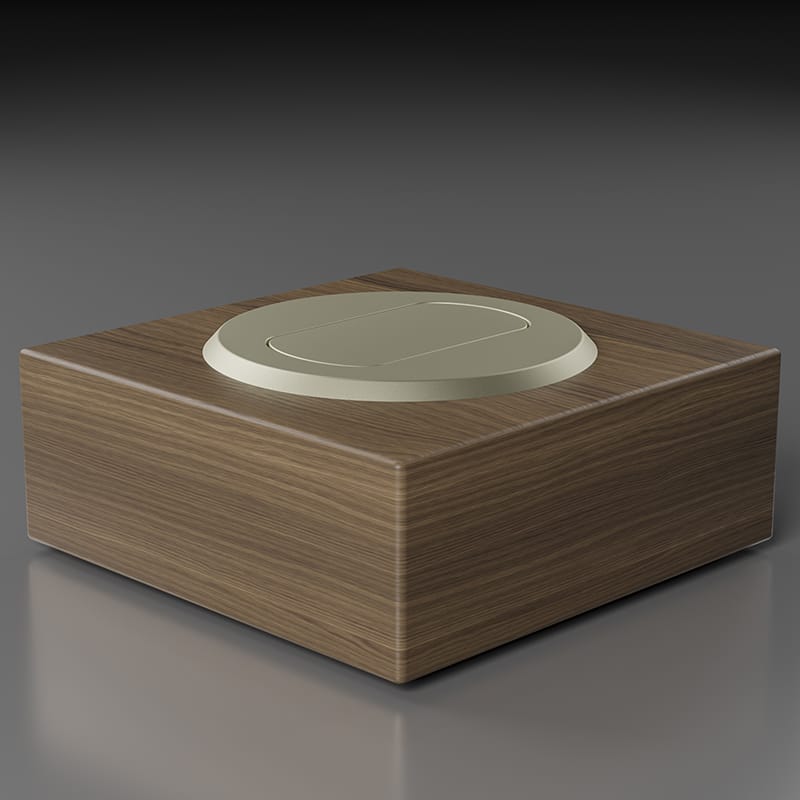

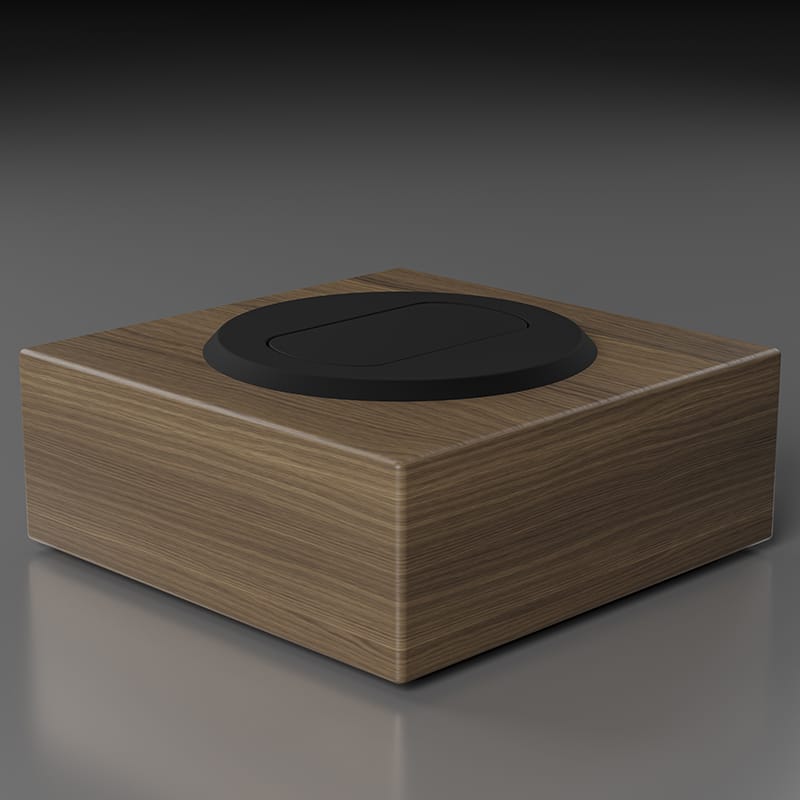

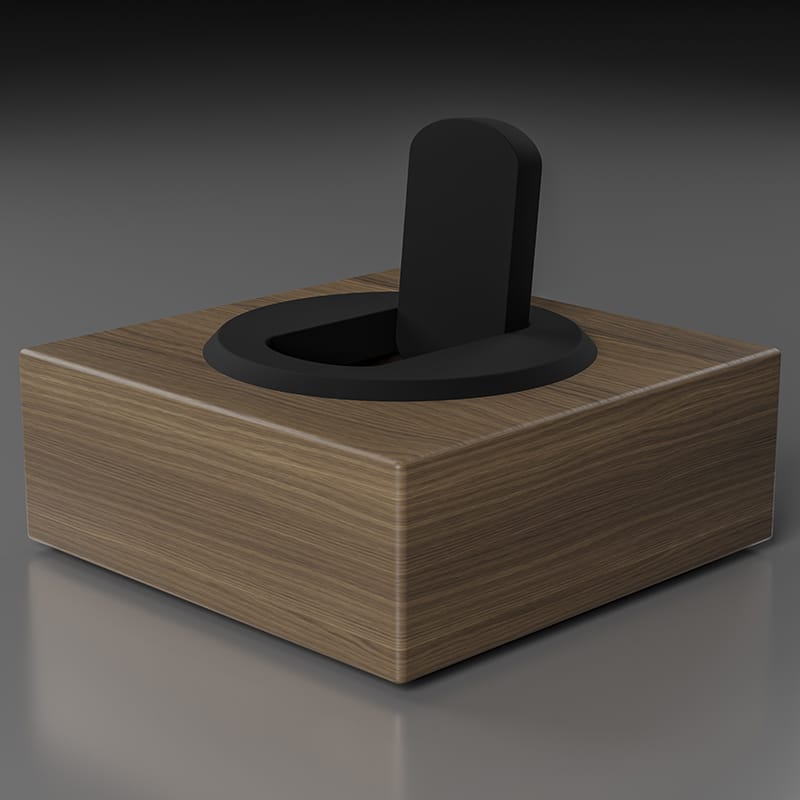

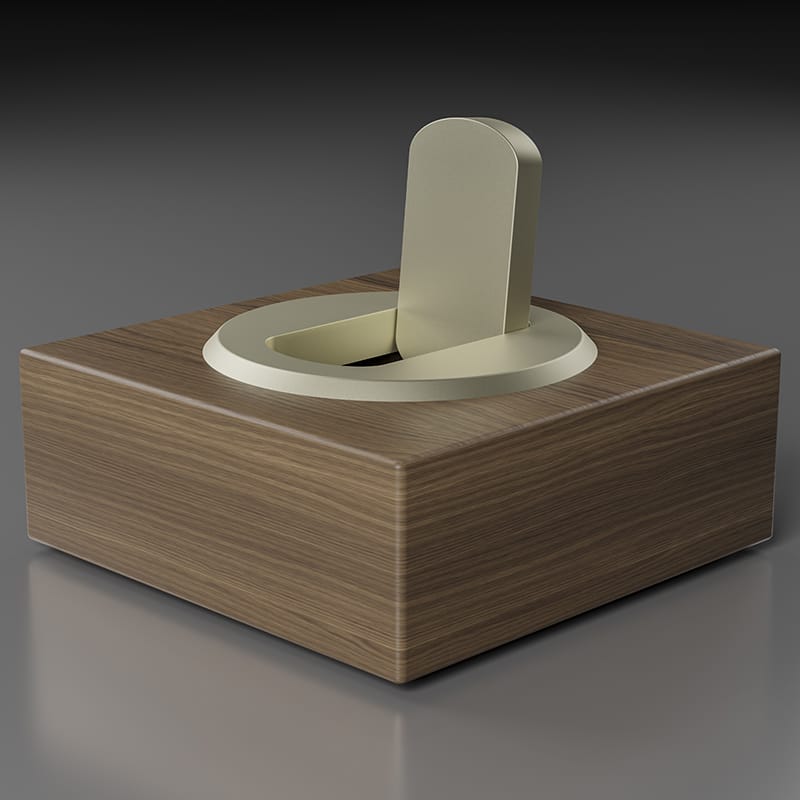

  • Hinged flap allows the unit to sit almost flush to a table Simple push / click fit allows a Microphone to be removed quickly and easily so that the table can be used for other matters.
  • Finish: Black Nextel® or Satin Nickel
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)

For 'Glossary of Terms' Click Here

SM 80
Application A low profile Through Table Shock Mount fitted with 3 Pin XLR Female Connector.
Termination 3 Pin Female XLR
Finish Black Nextel® or Satin Nickel.
Dimensions Height Above Surface: 3mm (0.18") Diameter: 58mm (2.28") Body Diameter: 51mm (2") Body Below Surface - XLR version: 61mm (2.4")
Architects and engineer specifications The Microphone Mount is of an all-metal construction with an overall diameter of 58mm/ 2.28”. A hinged flap allows the unit to sit almost flush to a table once the Microphone has been disconnected allowing the table to be used for other matters. It comes complete with a 3 Pin female XLR Connector allowing all 3 Pin Clockaudio “E” version microphones to be used. Finish: Black Nextel® or Satin Nickel.
SM 80X5
Application A low profile Through Table Shock Mount fitted with 5 Pin XLR Female Connector.
Termination 5 Pin Female XLR
Finish Black Nextel® or Satin Nickel.
Dimensions Height Above Surface: 3mm (0.18") Diameter: 58mm (2.28") Body Diameter: 51mm (2") Body Below Surface - XLR version: 61mm (2.4")
Architects and engineer specifications The Microphone Mount is of an all-metal construction with an overall diameter of 58mm/ 2.28”. A hinged flap allows the unit to sit almost flush to a table once the Microphone has been disconnected allowing the table to be used for other matters. It comes complete with a 5 Pin Female XLR Connector allowing all 5 Pin Clockaudio “E” version Microphones to be used. Finish: Black Nextel® or Satin Nickel.
SM 80-RF
Application Low profile Through Table Shock Mount fitted with Tini Q and 3 Pin XLR Female Connector and Phantom Power Adaptor.
Termination Input - 3 pin TA 3MB Male Tini Q Connector and Output – 3 Pin Male XLR
Finish Black Nextel® or Satin Nickel.
Dimensions Height Above Surface: 3mm (0.18") Diameter: 58mm (2.28") Body Diameter: 51mm (2") Body Below Surface - XLR version: 61mm (2.4")
Architects and engineer specifications The Through Table Microphone Mount is of an all metal construction. A hinged flap allows the unit to sit almost flush to a table once the Microphone has been disconnected, allowing the table to be used for other matters. It is supplied with a dedicated Phantom Power Adaptor designed to power the C 3100 miniature Gooseneck Microphones terminated with Tini Q 3 pin connectors. The Phantom power Adaptor accepts 9 to 48 volts DC and has an impedance of 200 Ohms. The Phantom Power Adaptor includes filters which will eliminate all GSM frequencies from 900-1200 MHz and is terminated with a Male 3 Pin XLR. Overall diameter of 58mm/ 2.28”. Finish: Black Nextel® or Satin Nickel.
